Removing Steering Column (Centre)

WARNING: This page is about a different variant/trim than selected.
CAUTION: Sharp edges on the steering column.
  • Risk of cuts or gashes to the hands.

    → Wear safety gloves.

  1. Unscrew screw -2-  on intermediate steering shaft -1-  .

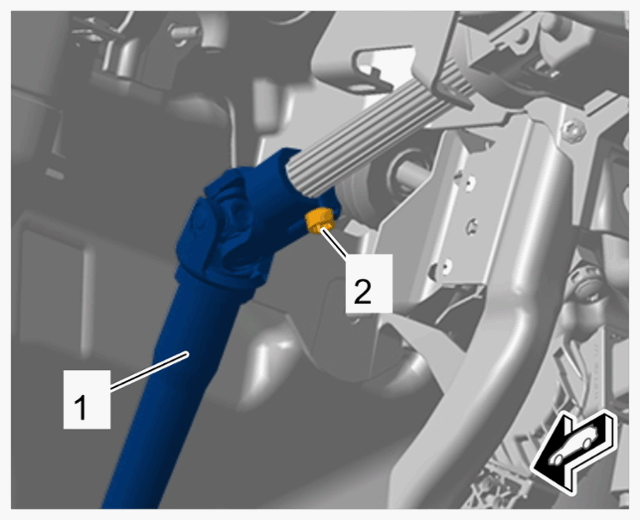

    G15290261Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Intermediate steering shaft on steering column (centre)

  2. Only for vehicles with electrical steering column adjustment:  Release and disconnect electric plug connection -1-  .

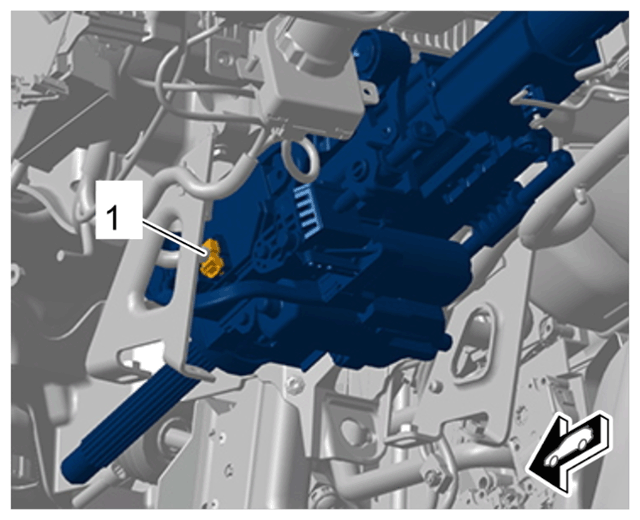

    G15290262Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection on steering column (centre)

  3. Remove steering column (centre) -1-  .

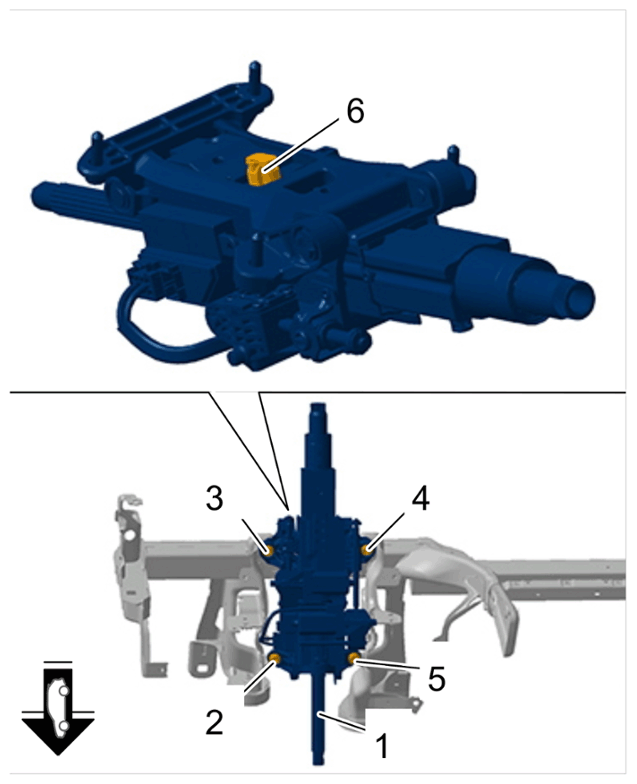

    Fig 1: Steering Column Screws Loosening Sequence
    G15290263Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Steering column (centre)

    1. 3.1  Unscrew screws in the sequence -5 to 2-  and support the centre of the steering column -1-  from below with your hand.
    2. 3.2 Only for vehicles with electric steering column lock:  Lower the centre of the steering column -1-  as far as required so that the electric plug connection -6-  on the electric steering column lock control unit is accessible.
    3. 3.3 Only for vehicles with electric steering column lock:  Release and disconnect electric plug connection -6-  .
    4. 3.4  Pull centre steering column -1- carefully  off the intermediate steering shaft and guide it out of the driver's footwell.
