Transfer box assembly overview:

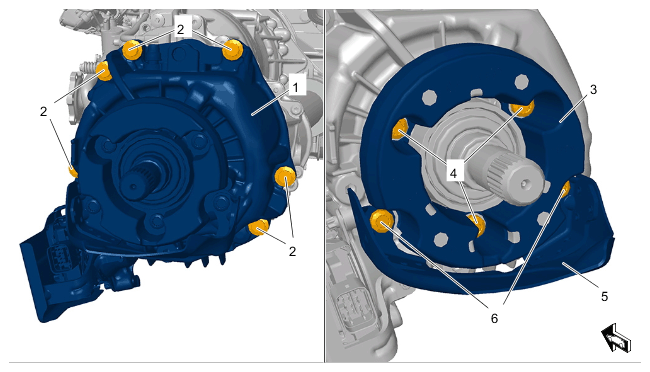

Fig 1: Transfer Box Assembly Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

(Hang-on) transfer box

1	(Hang-on) transfer box
2	Screw, M10 x 65/replace > Initial tightening 15 Nm (11.1 ftlb.) > Final tightening torque angle 180°
3	Vibration balancer
4	Screw, M8 x 22 > Tightening torque 28 Nm (20.7 ftlb.)
5	Shield
6	Screw, M8 x 22 > Tightening torque 28 Nm (20.7 ftlb.)

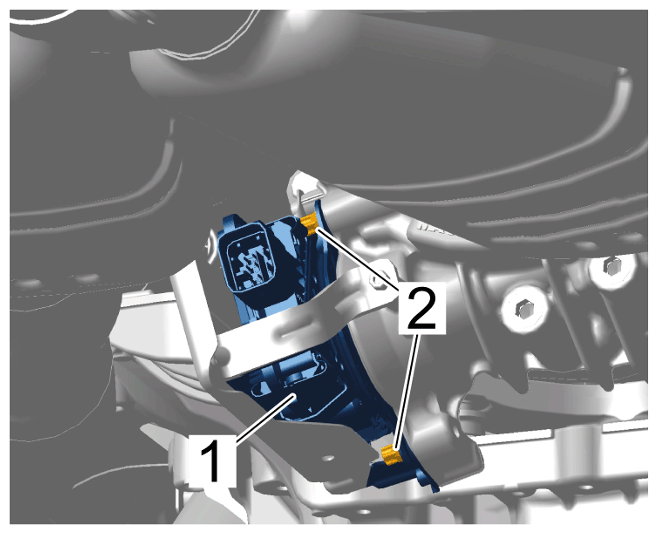

Fig 2: Servo Motor For Transfer Gear Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Servo motor for transfer gear

1	Servo motor for transfer gear (control unit)
2	Screw, M8 x 20 > Tightening torque 22 Nm (16.2 ftlb.)

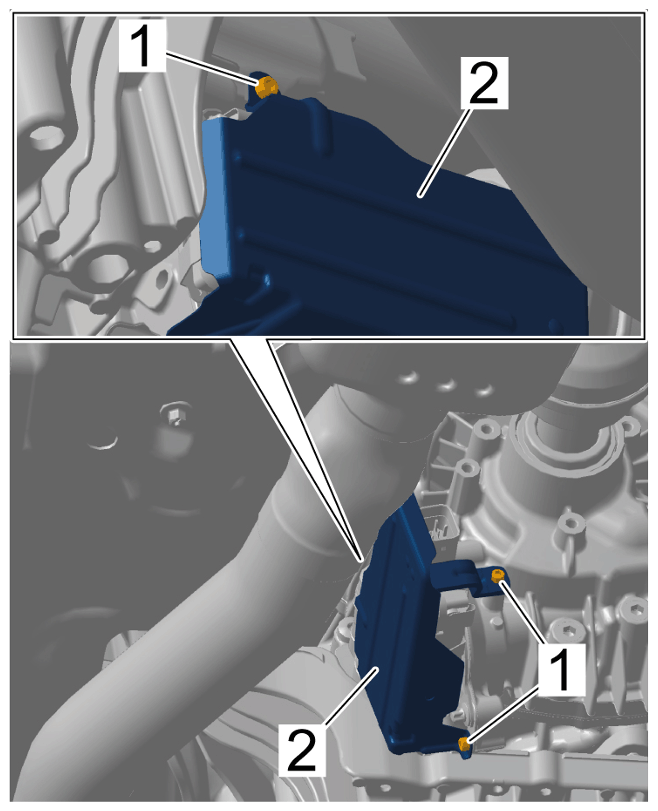

Fig 3: Heat Shield On Servo Motor For Transfer Gear Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Heat shield on servo motor for transfer gear

1	Screws, M5 x 16 > Tightening torque 5.8 Nm (4.3 ftlb.)
2	Heat shield

Transfer box temperature sensor

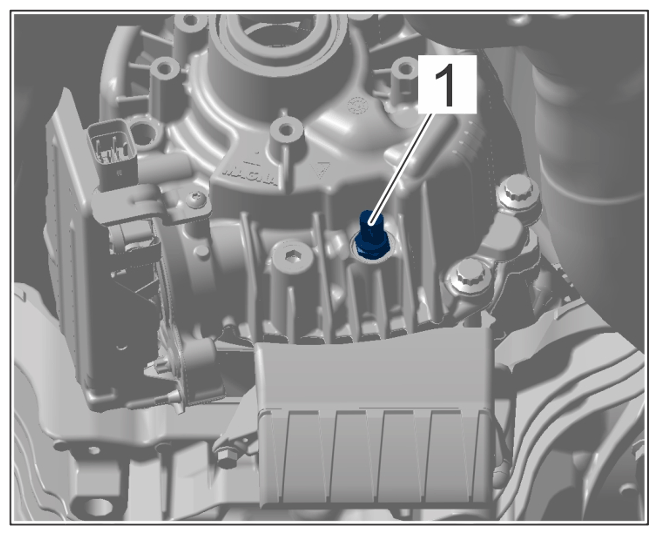

Fig 4: Transfer Box Temperature Sensor Component Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transfer box temperature sensor

1	Temperature sensor/always replace following removal > Tightening torque 14 Nm (10.3 ftlb.) > Filling capacity 0.6 litres

Use transmission oil for transfer box as listed in the Spare Parts Information!
