Atf Pan, Control Mechanism (Hydraulic Control Unit)

WARNING: This page is about a different variant/trim than selected.

Component overview of ATF pan, control mechanism (hydraulic control unit)

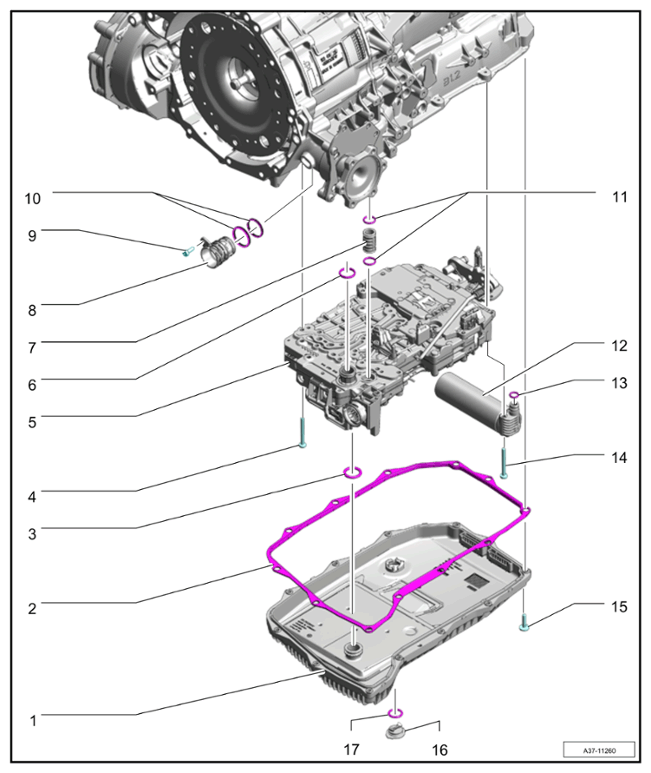

Fig 1: ATF Pan, Control Mechanism Components Location With Torque Specification

G15278812

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ATF pan, control mechanism

1	ATF pan with integrated filter - clean magnets before re-installation!
2	Seal - installed in oil pan, cannot be replaced!
3	O-ring - replace!
4	Screws for control mechanism - replace > Tightening torque 8 Nm (6 ftlb.)
5	Control mechanism
6	O-ring - replace!
7	ATF oil pipe
8	Connector housing
9	Screw for connector housing > Tightening torque 7.5 Nm (5.5 ftlb.)
10	Sealing rings for connector housing - replace!
11	O-rings for ATF oil pipe - replace!
12	pulse memory
13	O-ring - replace!
14	Screw, M6 x 28 > Initial tightening 4 Nm (3 ftlb.) > Final tightening torque angle 45 Grad
15	Screw for ATF pan > Tightening torque 10 Nm (7.5 ftlb.)
16	Oil drain plug on ATF pan
17	O-ring - replace!
not shown	M6 screw for speed sensor - replace > Initial tightening 4 Nm (3 ftlb.) > Final tightening torque angle 12 Grad

Tightening sequence for control mechanism:

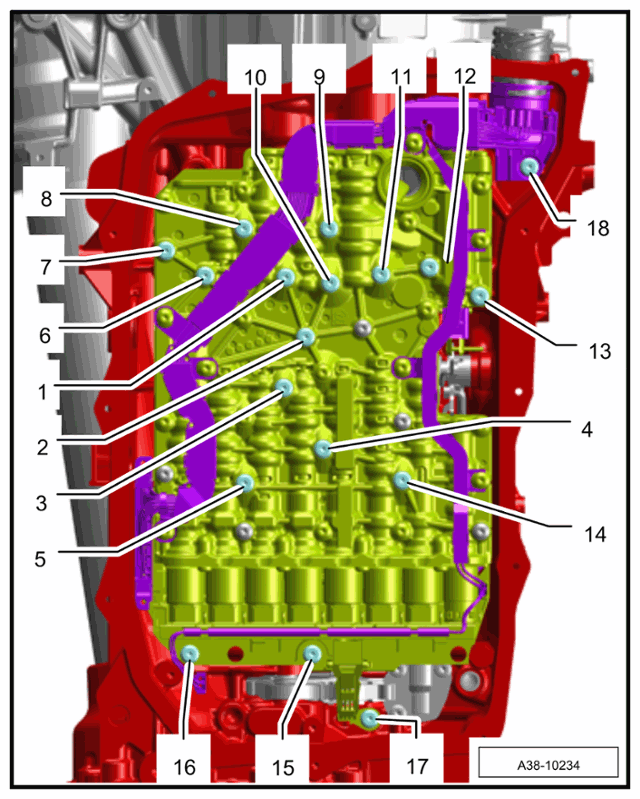

Fig 2: Control Mechanism Screws Tightening Sequence

G15278813

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for control mechanism

1 - 14	Screws, M6 x 59
15 - 18	Screws, M6 x 20

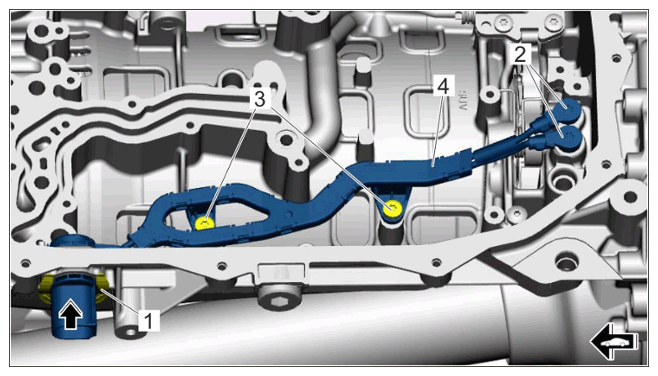

Fig 3: Wire Harness In Transmission Component Location With Torque Specification

G15278814

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Wire harness in transmission

3	Screws M6x20 > Tightening torque 10 Nm (7.5 ftlb.)

Tightening sequence for ATF pan (V6 MT/BT):

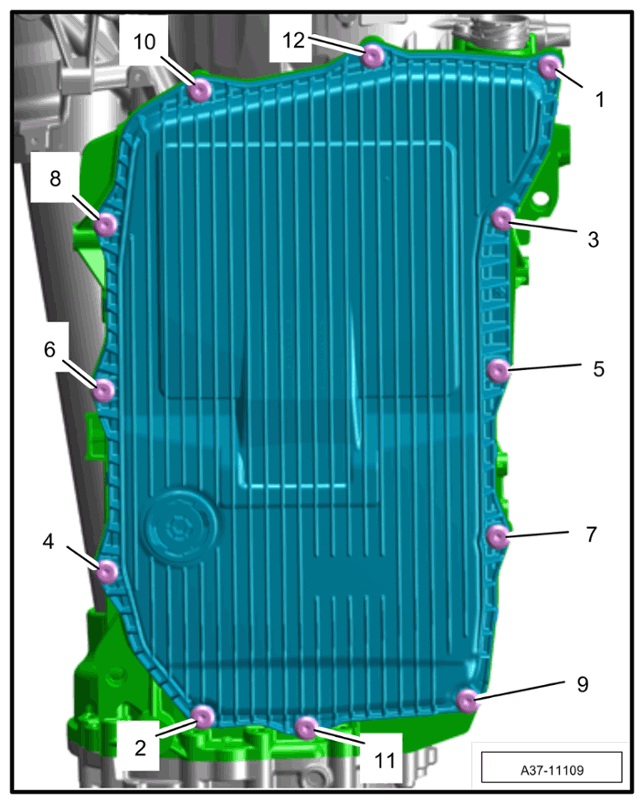

Fig 4: ATF Pan Screws Tightening Sequence - V6

G15278815

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for ATF pan - V6

Tightening sequence for ATF pan (V8 BT) -14- :

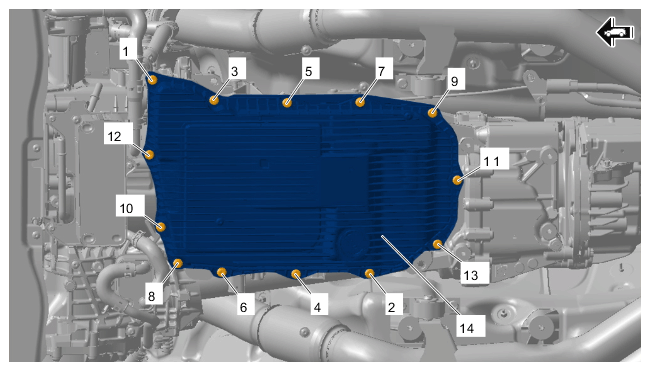

Fig 5: ATF Pan Screws Tightening Sequence - V8 BT

G15278816

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tightening sequence for ATF pan - V8 BT

ATF oil flange on control mechanism:

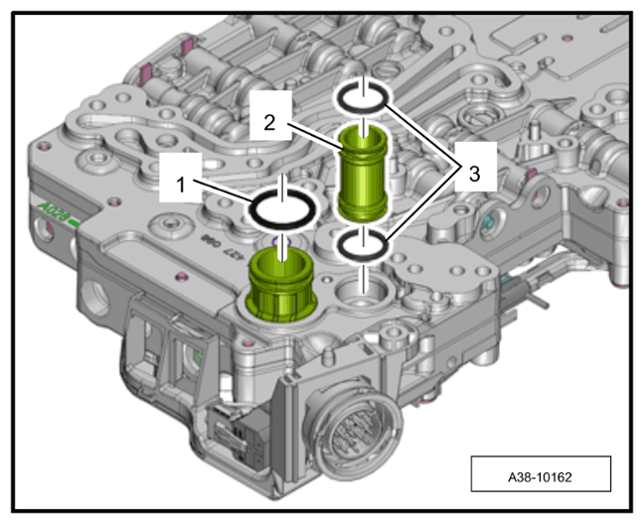

Fig 6: ATF Oil Flange Components Location

G15278817

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

ATF oil flange

1	O-ring on oil flange (large diameter) - not available as individual units!
2	Oil flange - small diameter
3	O-ring on oil flange (small diameter) - not available as individual units!
