Unit Mounts: Notes

WARNING: This page is about a different variant/trim than selected.

Component overview:

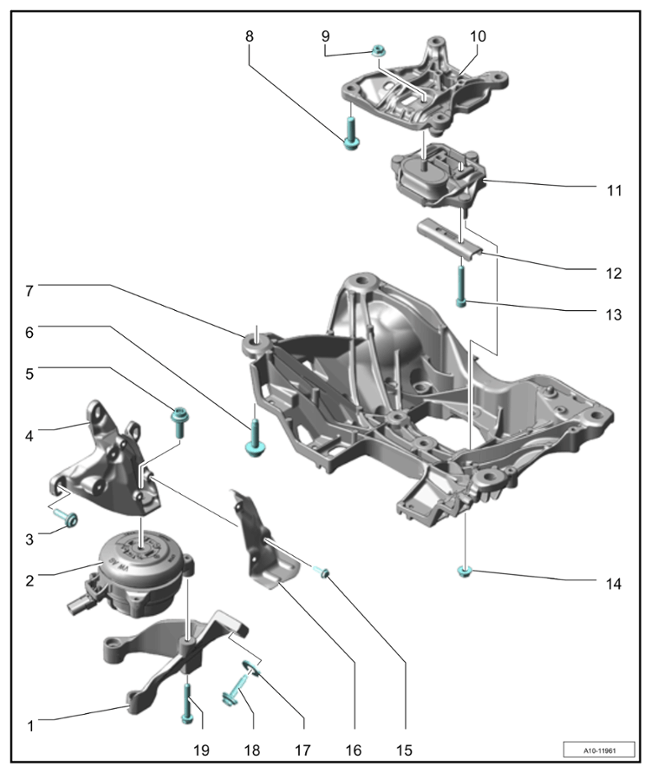

Fig 1: Conventional Unit Mounts Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Conventional unit mounts (illustration may be different)

1	Transmission mount support
2	Transmission mount, side
3	Screw, M8 x 32 > "Tightening torque 20 Nm (15 ftlb.)"
4	Transmission bracket
5	Screw, M10 x 35 > "Tightening torque 55 Nm (41 ftlb.)"
6	Screw, M10 x 50 > "Tightening torque 55 Nm (41 ftlb.)"
7	Cross member
8	Screw, M10 x 40 > "Tightening torque 40 Nm (30 ftlb.)"
9	Hexagon nut, M8 (only unscrew if the transmission mount must be separated from the transmission bracket!) > "Tightening torque 20 Nm (15 ftlb.)"
10	Transmission bracket
11	Transmission mount
12	Lower stop
13	Screw, M8 x 60 (only unscrew if the transmission mount must be separated from the transmission bracket!) > "Initial tightening 20 Nm (15 ftlb.)" > "Final tightening torque angle 90 Grad"
14	Hexagon nut, M8 > "Tightening torque 20 Nm (15 ftlb.)"
15	Screw, M6 x 22 (heat shield on transmission mount) > "Tightening torque 10 Nm (7.5 ftlb.)"
16	Heat shield
17	Washer
18	Screw, M10 x 55 (transmission mount support) > "Tightening torque 55 Nm (41 ftlb.)"
19	Screw, M8 x 60 > "Tightening torque 20 Nm (15 ftlb.)"

Transmission unit mounts with hydraulic transmission mount design:

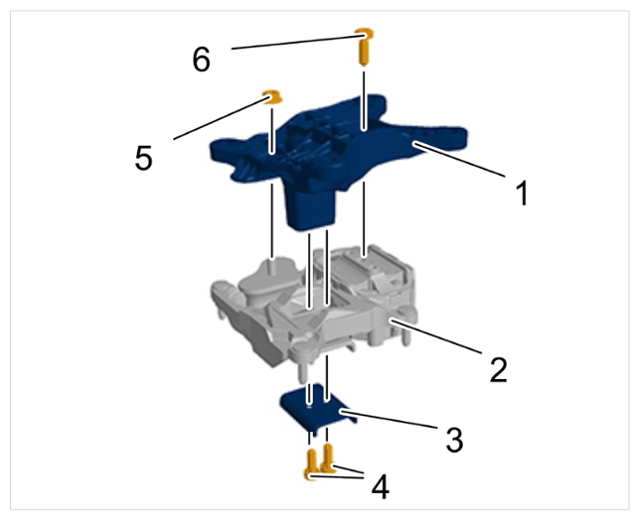

Fig 2: Hydraulic Transmission Mount Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hydraulic transmission mount

1	Transmission bracket
2	Transmission mount
3	Lower stop
4	Screw, M8 x 25 (only unscrew if the transmission mount must be separated from the transmission bracket!) > "Initial tightening 20 Nm (15 ftlb.)" > "Final tightening torque angle 90 Grad"
5	Flange nut, M8 (only unscrew if the transmission mount must be separated from the transmission bracket!) > "Tightening torque 20 Nm (15 ftlb.)"
6	Screw, M8 x 25 > "Initial tightening 20 Nm (15 ftlb.)" > "Final tightening - torque angle 90 Grad"
