Service Information 37 - Transmission Components, Flange Screws, Markings

WARNING: This page is about a different variant/trim than selected.

Component overview

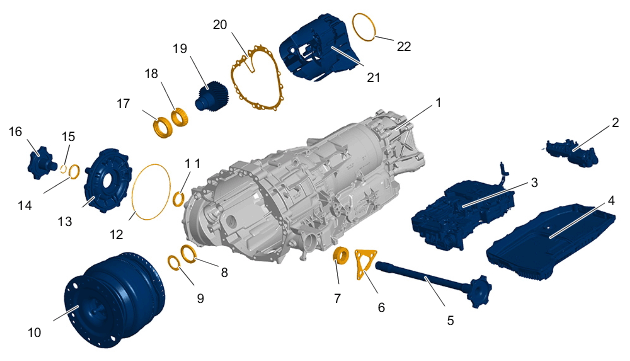

Fig 1: Overview Of Automatic Transmission Components Location

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Component overview of automatic transmission

Screws securing transmission to engine flange:

General specification: Replace aluminum screws!

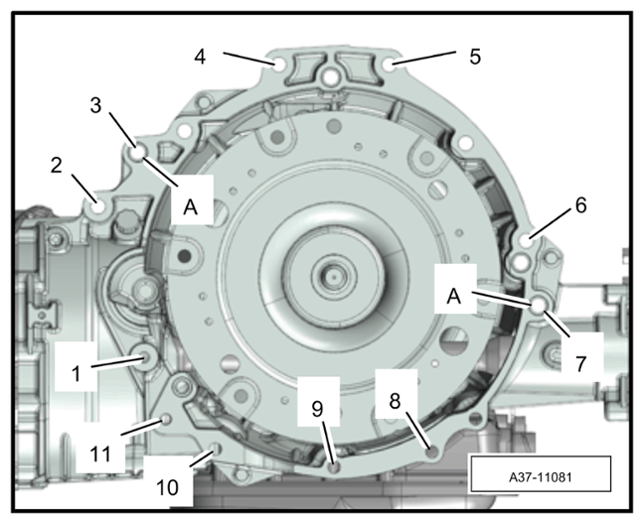

Fig 2: Transmission To Engine Flange Screws Tightening Sequence

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission to engine flange

1	Screw, M10 x 50 > "Tightening torque 65 Nm (48 ftlb.)"
2 - 7	Aluminum screws, M12 > "Initial tightening torque 30 Nm (22 ftlb.)" > "Final tightening torque angle 90 Grad"
8 - 11	Aluminum screws, M10 > "Initial tightening torque 15 Nm (11 ftlb.)" > "Final tightening torque angle 90 Grad"
LHD vehicle	Dowel sleeve - replace if damaged!

Starter pinion cover (PHEV):

Information

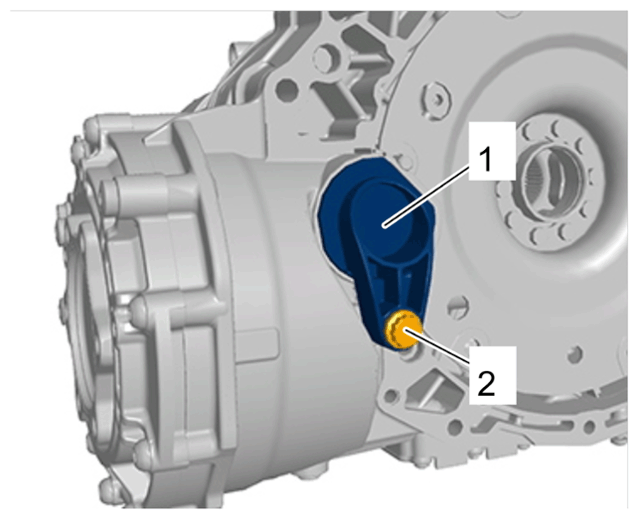

Fig 3: Starter Pinion Cover On PHEV Vehicles Components Location With Torque Specification

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Starter pinion cover on PHEV vehicles

1	Starter pinion cover - please note that different types exist!
2	Screw for cover - please note that different types exist! > "Tightening torque 65 Nm (48 ftlb.)" > "Tightening torque 20 Nm (14.75 ftlb.)"

Transmission markings:

The transmission markings are at the right on the rear housing side in direction of travel.

The "-Arrows-" indicate the reading direction!

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Transmission markings

1	Position on vehicles with 4-cylinder and 6-cylinder engines
2	Position on vehicles with 8-cylinder engines
