Removing (Drive) Sun Blind
WARNING: This page is about a different variant/trim than selected.
- Loosen sun blind (drive).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

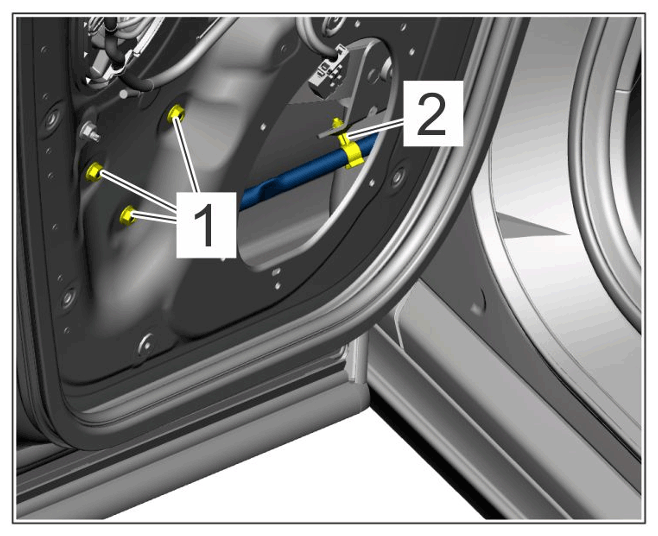

Nuts
- 1.1 Unscrew nuts -1-
.
- 1.2 Unclip holder -2-
.
- Remove sun blind (drive) -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

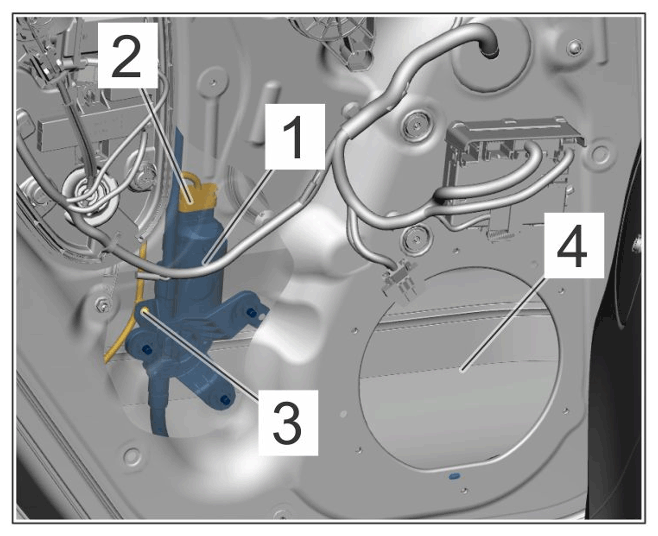

Electric plug connection
- 2.1 Disconnect electric plug connection -2-
.
- 2.2 Unclipping cable holder -3-
.
- 2.3 Guide sun blind (drive) -1-
out through the opening for the loudspeaker -4-
.
