Removing Cover For Tray
WARNING: This page is about a different variant/trim than selected.
Information
Cover for tray must not
be turned upside down because otherwise the crash lock will be triggered.
- Unclip cover -1-
using a suitable tool -Arrows-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cover
- Unscrew screws -2-
from cover for tray -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screws on cover for tray

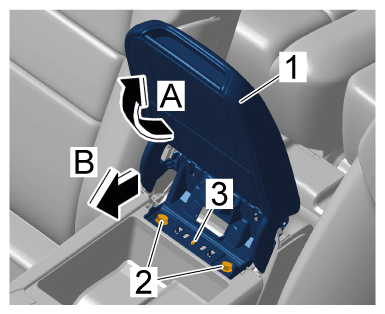

- Tilt cover for tray -1-
with cover base to the rear -arrow A-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Locating peg on cover for tray
- Pull cover for tray -1-
forward and remove it -arrow B-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Cover for tray
