Removing Cover On Rear Centre Console

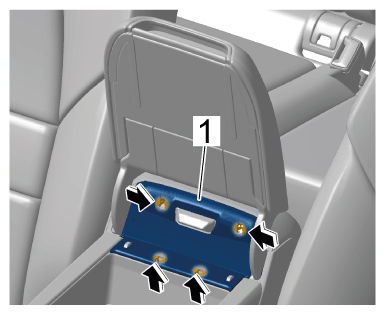

1. 1.1 Unclip cover on -1-  a suitable tool at the front. -Arrows-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Cover

2. 1.2 Unclip microswitch. -2-

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Microswitch

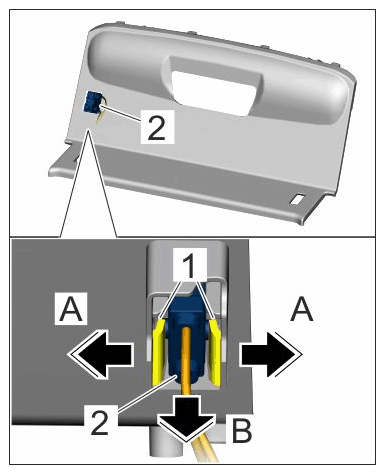

   1. 1.2.1 Swivel cover aside until the microswitch is accessible.
   2. 1.2.2 Release locking lugs. -1-Arrows A-
   3. 1.2.3 Remove microswitch. -2-Arrows B-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on rear centre console

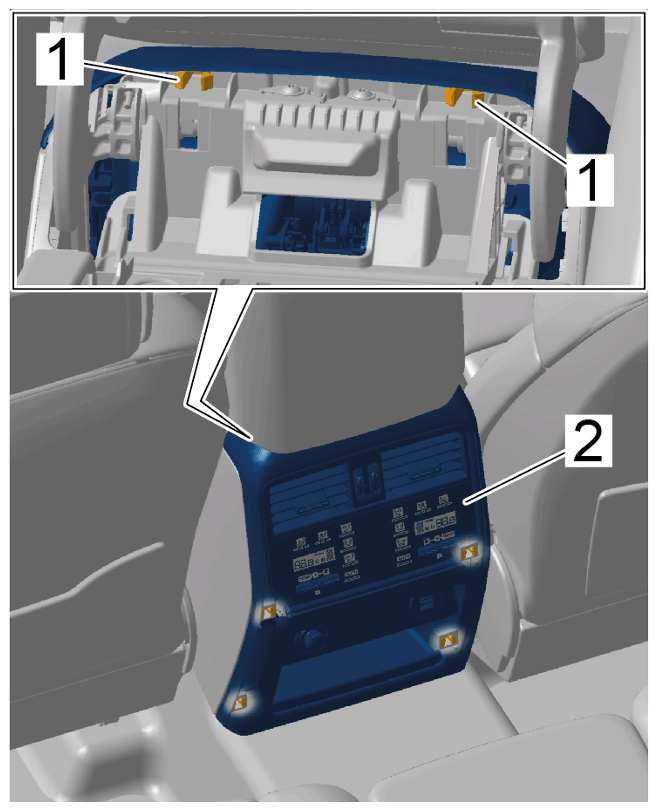

1. 2.1 Press retaining lugs -1-  together.
2. 2.2 Unclip rear centre console cover -2-  using a plastic wedge.

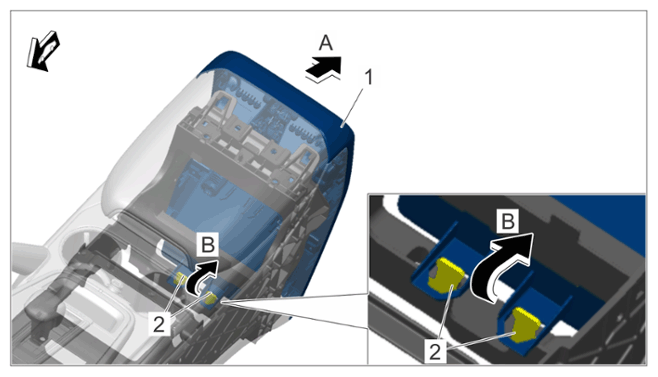

3. 2.3 Pull rear centre console cover -1-  to the rear -Arrow A-  and disengage it from the brackets. -2-Arrow B-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on rear centre console

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

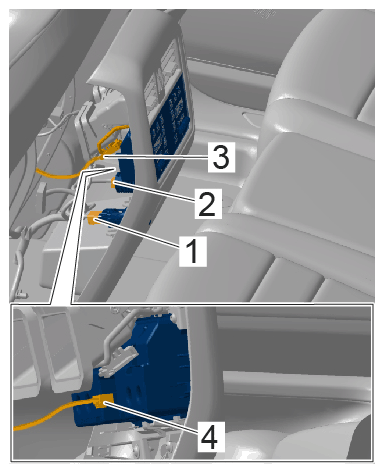

Electric plug connections

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
