Removing Sun Visor

WARNING: This page is about a different variant/trim than selected.

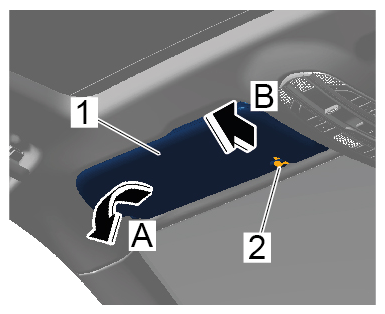

Loosen sun visor -1- from its bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor
1. 1.1 Fold down sun visor -1- (-arrow A- ) and unclip it from its bracket -2- .
2. 1.2 Swivel out the sun visor -1- (-arrow B- ).

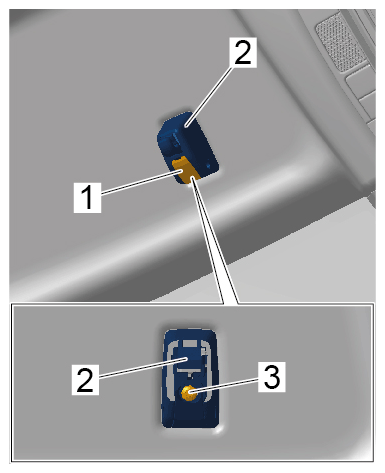

Unclip cover -1- from bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on bracket
Unscrew fastening screw -3- from bracket -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw for bracket
Unclip cover -1- from the sun visor base using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on sun visor base

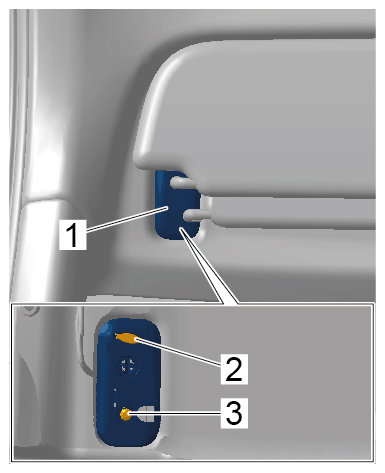

Open clamp -2- using a suitable tool.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clamp on sun visor base
Unscrew fastening screw -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screw

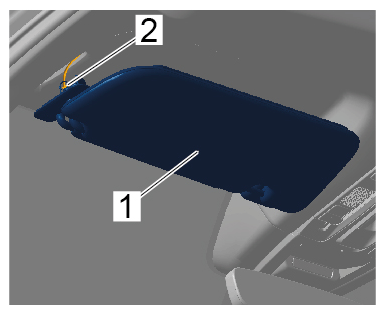

Unclip sun visor -1- from the headliner and release and disconnect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Sun visor to headliner
