Removing Rear Ashtray
WARNING: This page is about a different variant/trim than selected.

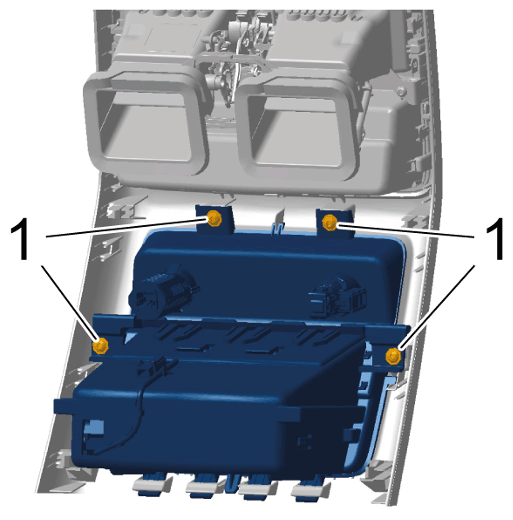

- Unscrew fastening screws -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening screws

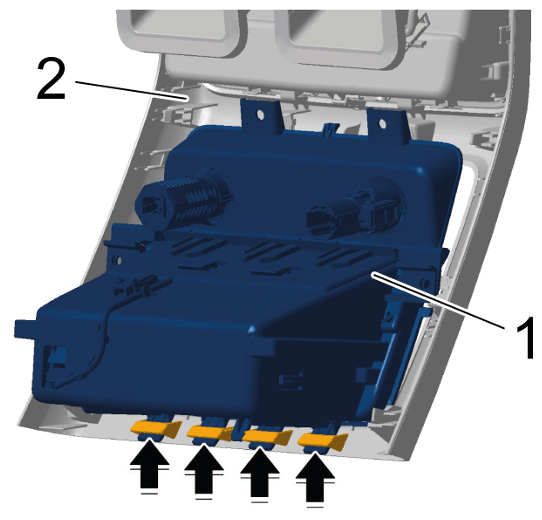

- Remove rear ashtray -1-
together with cover from rear centre console cover -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear ashtray with cover

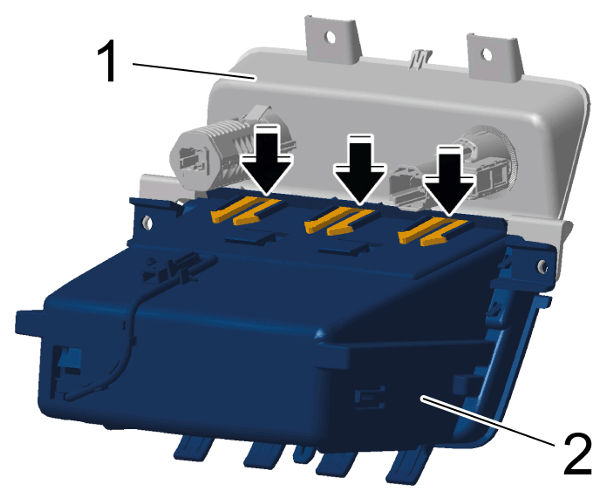

- Unclip cover -1-
from rear ashtray -2-
(-Arrows-
).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear ashtray
