Removing Front Ashtray
WARNING: This page is about a different variant/trim than selected.

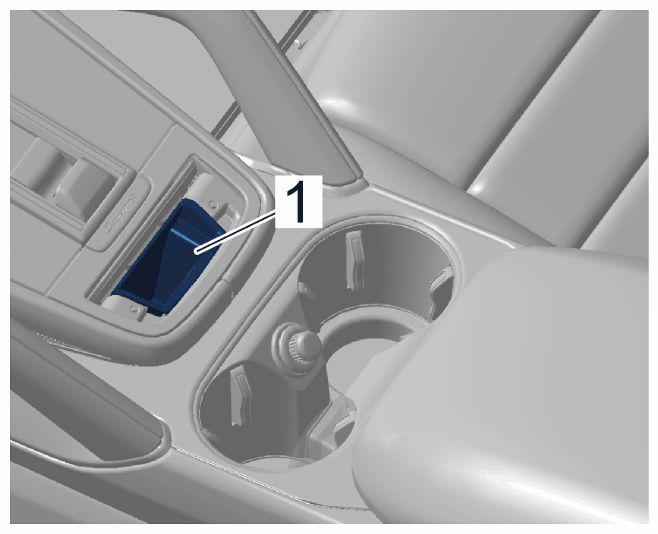

- Pull out ashtray pot -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Ashtray pot

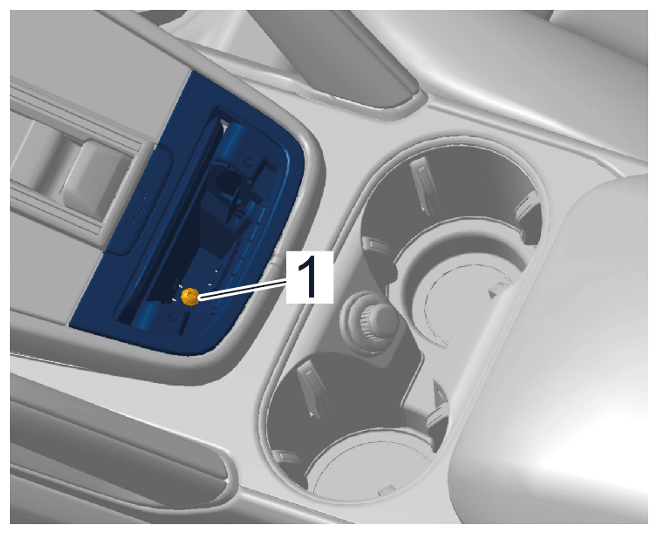

- Unscrew screw -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Screw

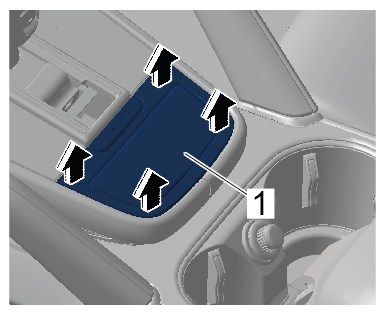

- Unclip front ashtray -1-
using an assembly wedge -Arrows-
and remove it.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Front ashtray
