Removing Upper Part Of Centre Console Cover
WARNING: This page is about a different variant/trim than selected.

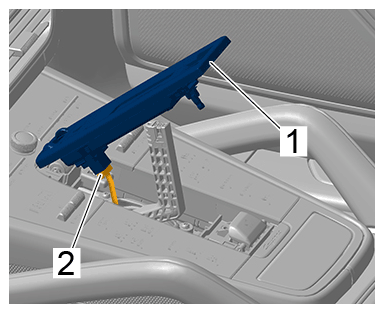

- Unclip upper part of centre console cover -1-
by pulling it upwards and release and disconnect electric plug connection -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Upper part of centre console cover

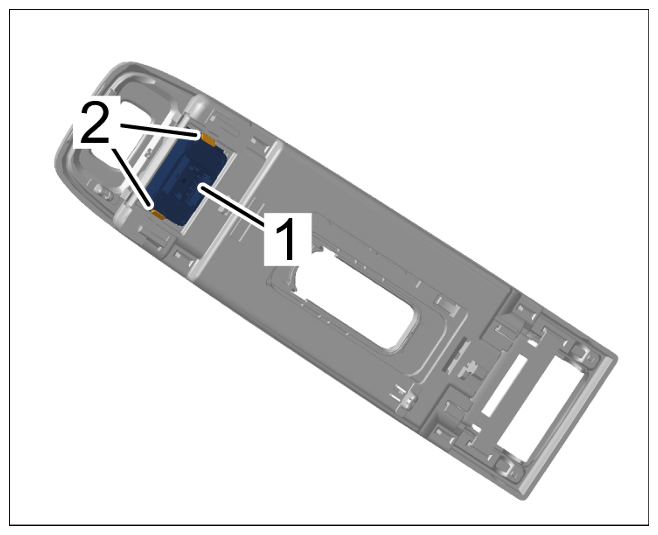

- Only when replacing components:
Release clamps -2-
and unclip hazard warning light switch -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Hazard warning light switch
