Removing Centre Console Cover (Frame)

WARNING: This page is about a different variant/trim than selected.

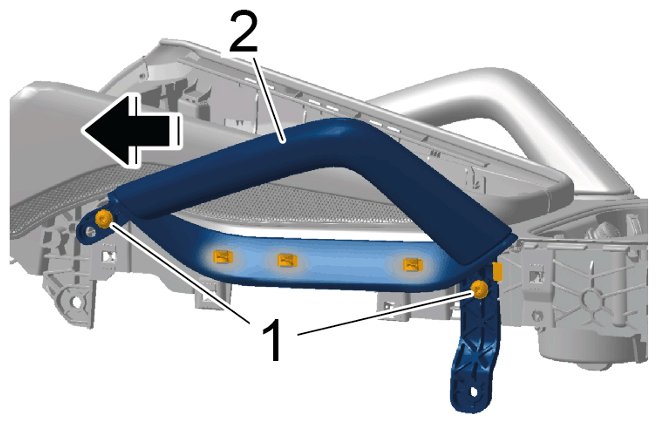

Unscrew screws -1- on both sides and remove grab handle at the left -2- and right.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Grab handle

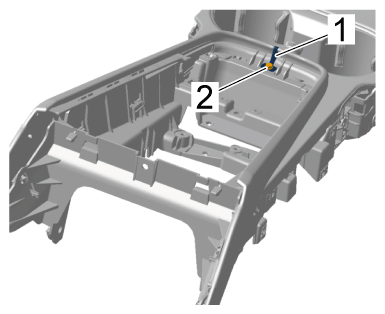

Remove trim element -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trim element
1. 2.1 Unscrew screw -2- .
2. 2.2 Remove trim element -1- .

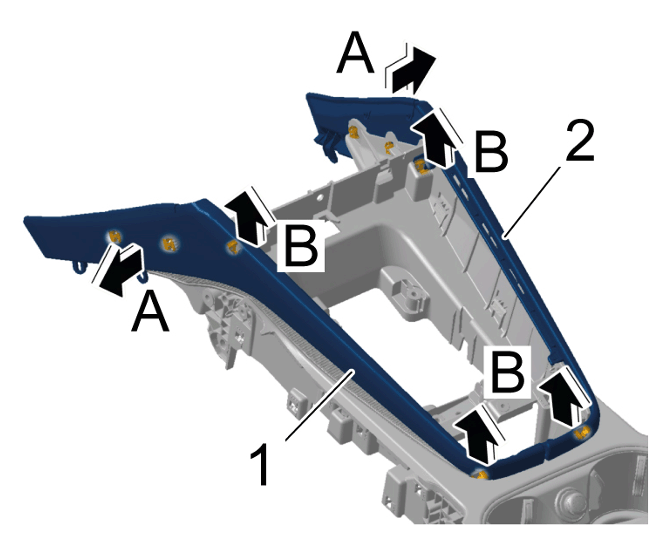

Remove trim panels -1 and 2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Left and right trims
1. 3.1 Unclip trims -1 and 2- at the front -arrows A- .
2. 3.2 Unclip trims -1 and 2- at the top -arrows B- .
3. 3.3 Remove trims -1 and 2- .

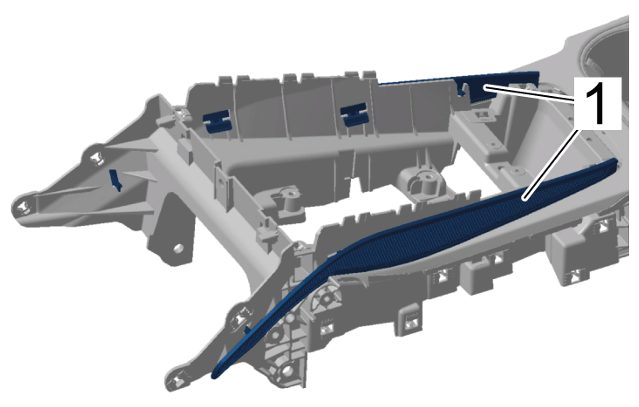

Lift up and remove trims -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Trims

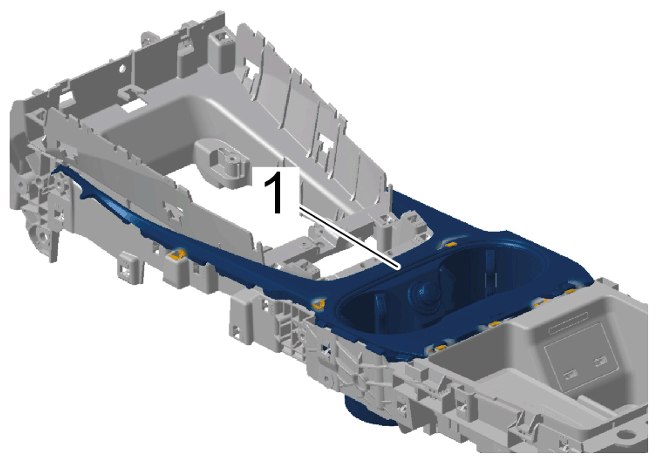

Unclip centre console cover (frame) -1- with cupholder.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Centre console cover (frame)

Only when replacing components:
Remove cupholder.
> 683019 REMOVING AND INSTALLING CUPHOLDER
