Assemble Centre Console

Information

Check whether clips are bent or broken.

Check that all clips are positioned fully and correctly.

Replace missing and damaged clips with new clips.

Assembly is performed in reverse order. Pay particular attention to the following:

1. Install cover with cup holder.
   1. 1.1 Move 12-volt socket into installation position.

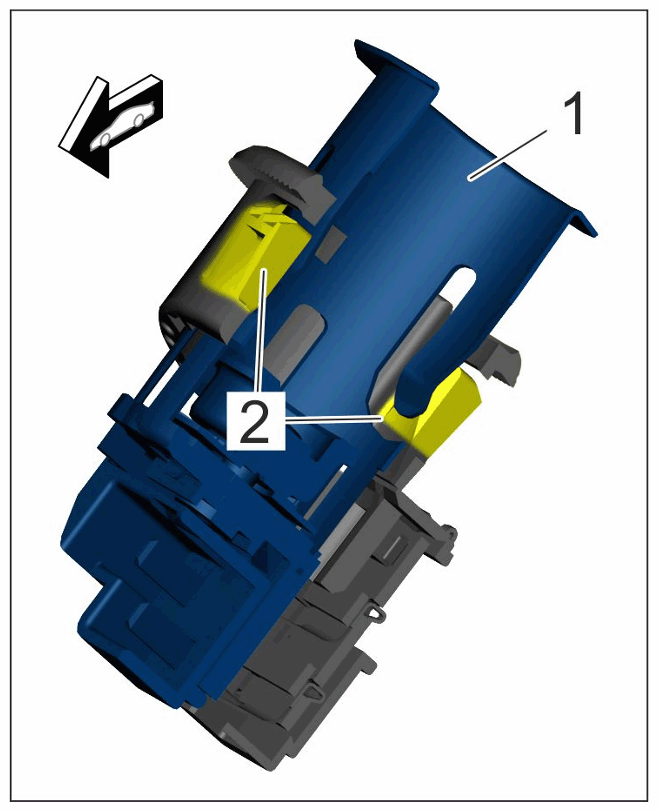

      1. 1.1.1 Position 12-volt socket -1-  in the light ring.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Installation position

      Push 12-volt socket -1-  as far as required into the light ring until the 12-volt socket is secured at the locking lugs -2-  .

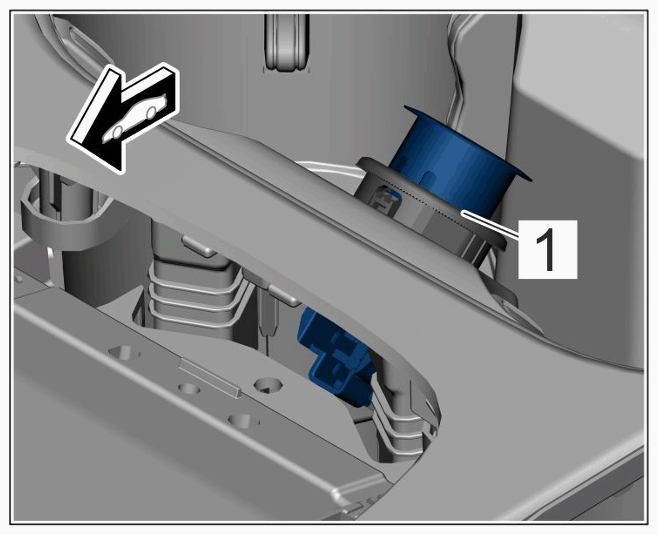

   2. 1.2 Preposition light ring with 12-volt socket -1-  in cover with cup holder.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Pre-positioning

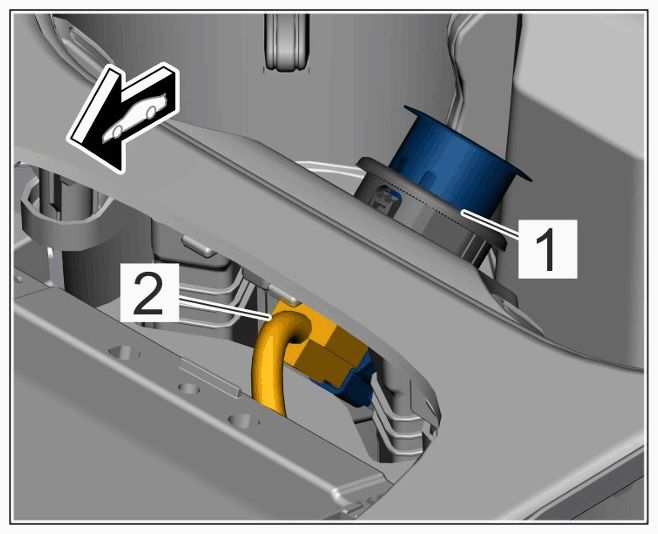

   3. 1.3 Connect plug connection -2-  for 12-volt socket -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Plug connection

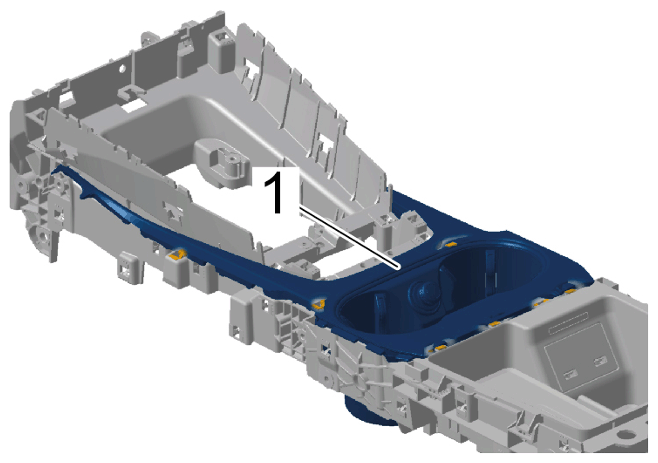

   4. 1.4 Clip in cover -1-  with cup holder.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Cover

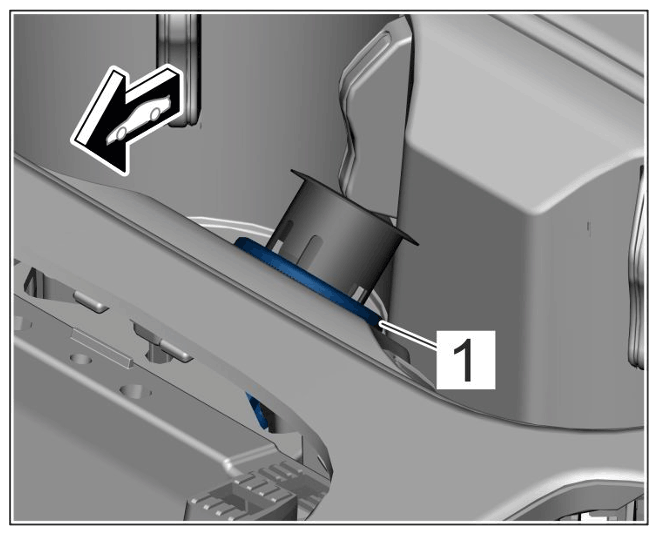

   5. 1.5 Engage light ring -1-  .

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Light ring

      1. 1.5.1 Press light ring -1-  together with the 12-volt socket down until the locking lugs lock securely

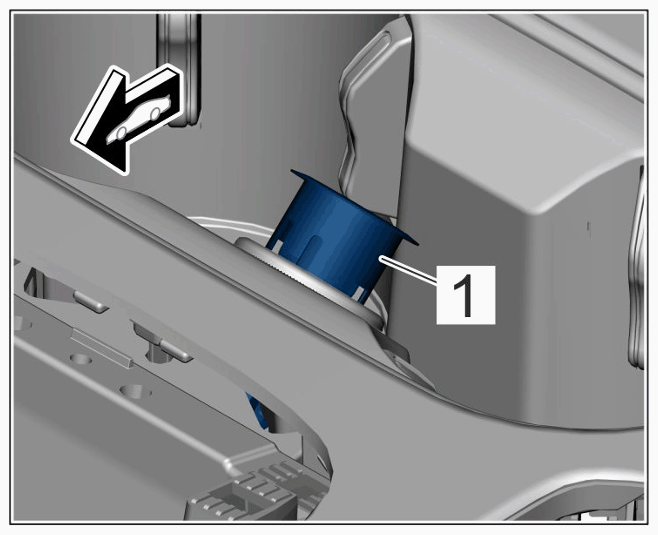

   6. 1.6 Engage 12-volt socket -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   12-volt socket

   Tighten screws to > Tightening torque 8 Nm (6 ftlb.)  .
