Removing Upper Part Of Centre Console

WARNING: This page is about a different variant/trim than selected.

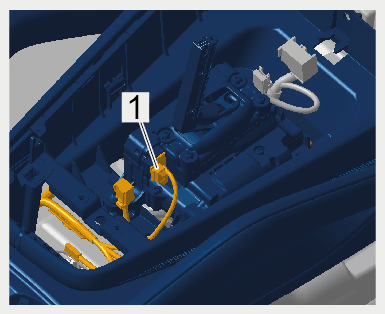

Release and disconnect electric plug connection -1- at selector support.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection

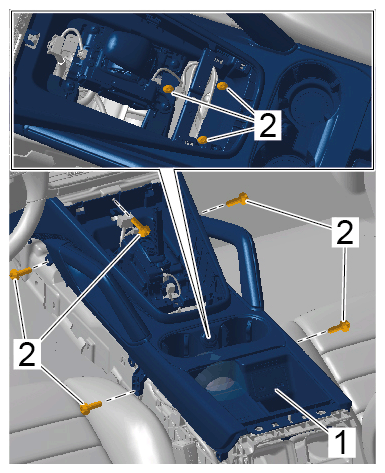

Unscrew fastening screws -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws

Information

The number of electric plug connections will vary depending on equipment.

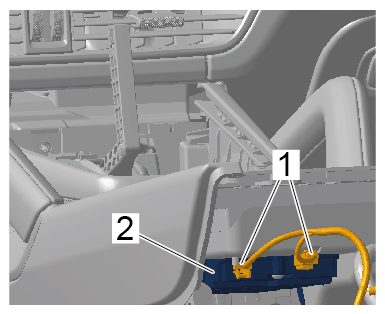

Release and disconnect electric plug connections -1- on Comfort telephony control unit -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections
Release and disconnect electric plug connection -1- on Kessy antenna.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection on Kessy antenna

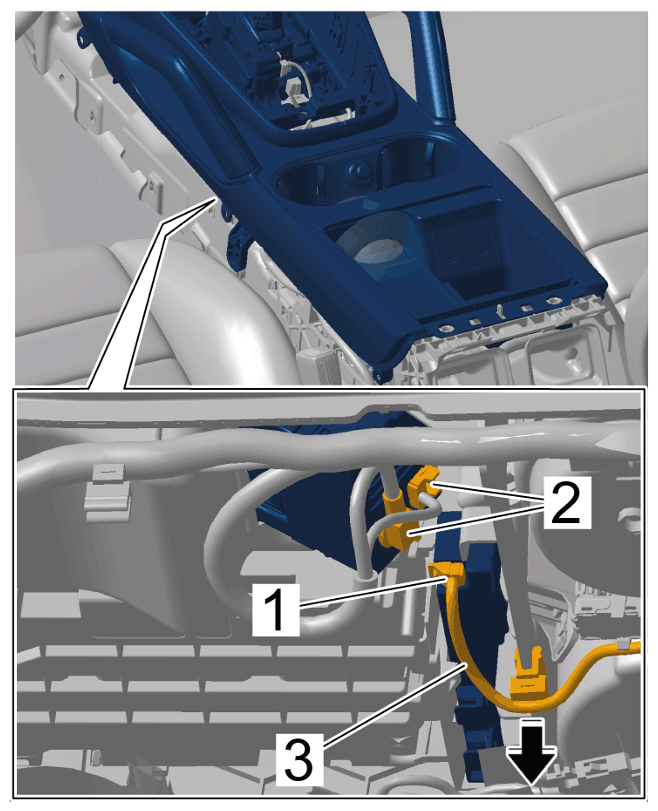

Release and disconnect electric plug connections -2- at the USB interface.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection at USB interface
Unclip electric wire harness -3- from upper part of centre console -Arrow- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric wire harness

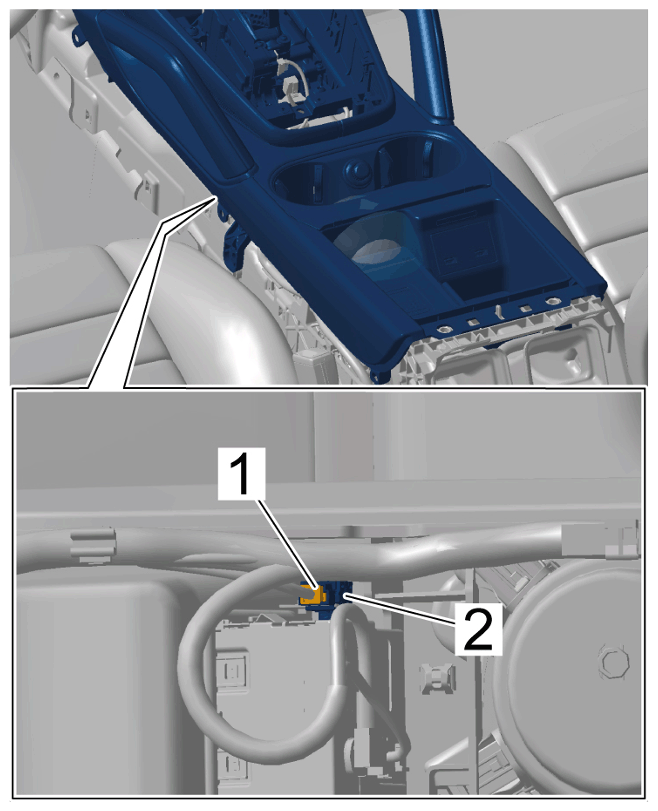

Release and disconnect electric plug connection -1- on package box lighting -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connection for package box lighting

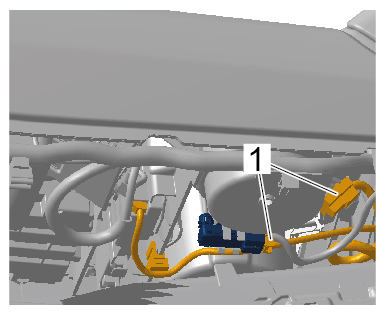

Release and disconnect electric plug connections -1- for lighting on package box.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric plug connections

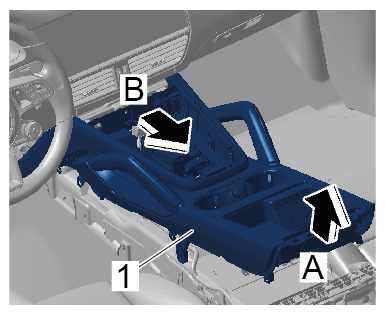

Lift up upper part of centre console -1- at the rear as far as possible -arrow A- and pull it out to the rear -arrow B- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Upper part of centre console
Remove upper part of centre console.
