Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|
| Nuts securing rear centre console to bracket | Item 1 | Tightening torque | 20 Nm (15 ftlb.) | ||

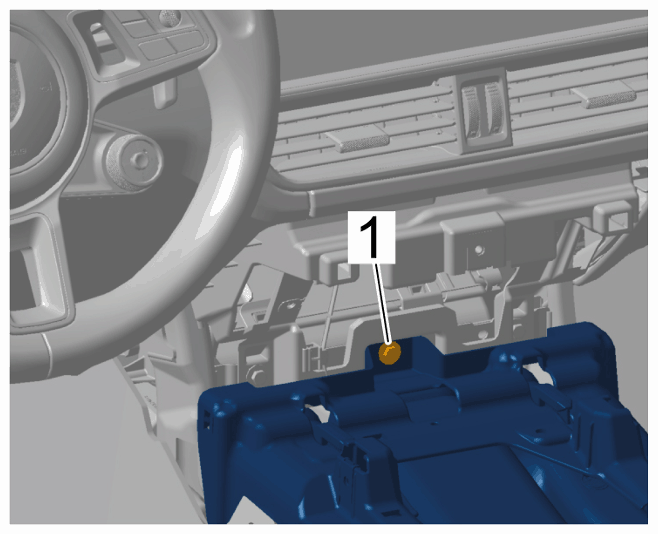

| Screw securing front centre console to instrument panel | Item 1 | Tightening torque | 4 Nm (3 ftlb.) | ||
|
Screw |
|||||

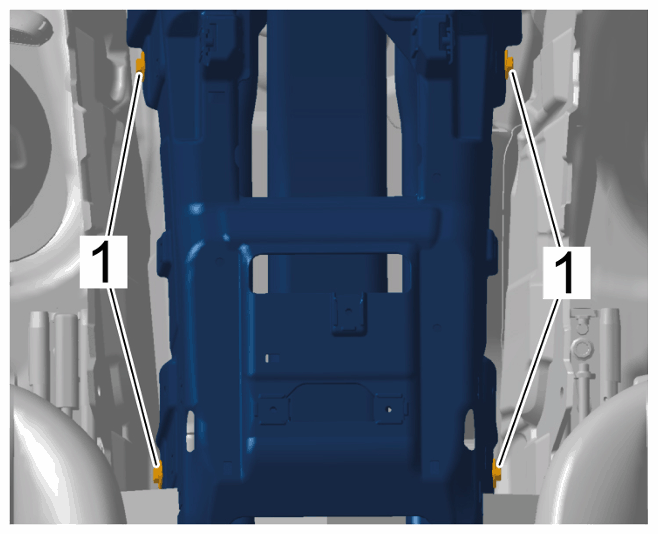

| Screws securing centre console to bracket | Item 1 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Screws |
|||||
