Preliminary Work

WARNING: This page is about a different variant/trim than selected.

Remove upper part of centre console.
> 68171901 REMOVING AND INSTALLING UPPER PART OF CENTRE CONSOLE
Remove left front seat.
> 720119 REMOVING AND INSTALLING FRONT SEAT - information on "Removing"
Disconnect antenna lines at the rear centre console.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

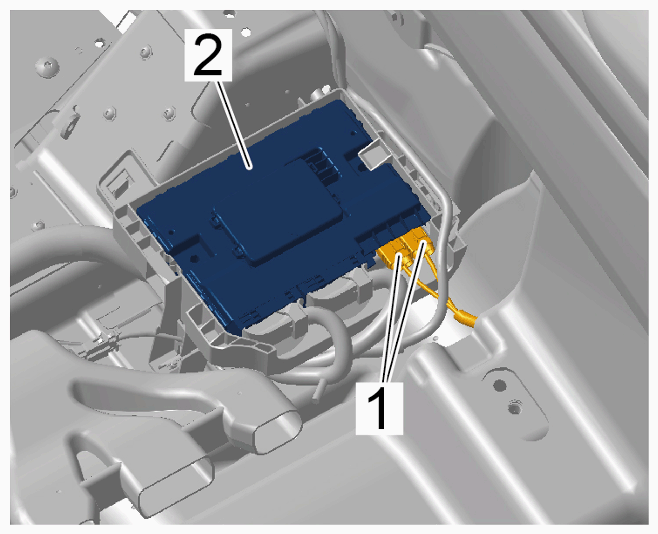

Gateway control unit
1. 3.1 Release and disconnect plug connections for antenna lines -1- on the gateway control unit -2- .
  > 903519 REMOVING AND INSTALLING GATEWAY CONTROL UNIT
2. 3.2 Pull out antenna lines from the control unit to the centre console under the carpeted floor.
