Installing Centre Console

Information

Check that the air ducts -1-  are positioned correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

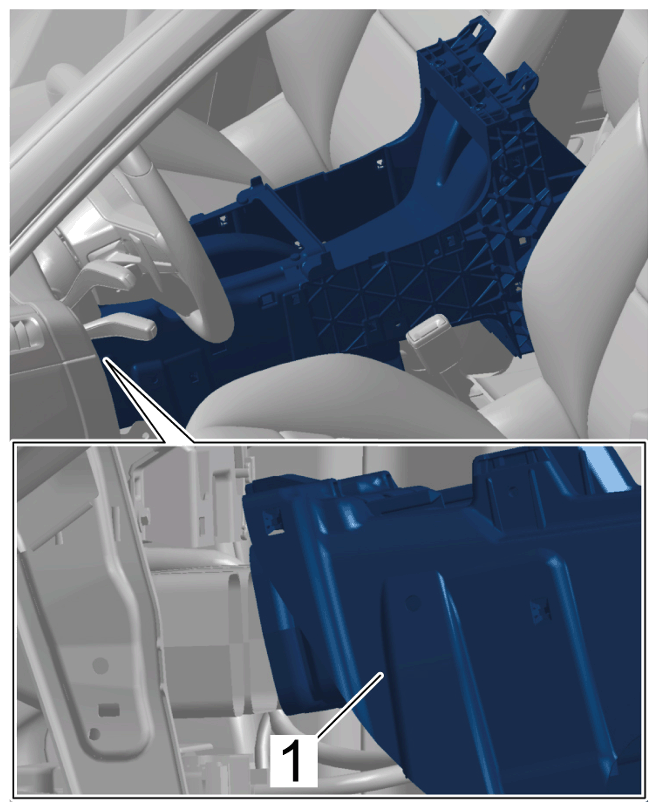

Installation position of centre console without rear air conditioning

• Installation position of centre console without rear air conditioning

Information

Check that the air ducts -1-  are positioned correctly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

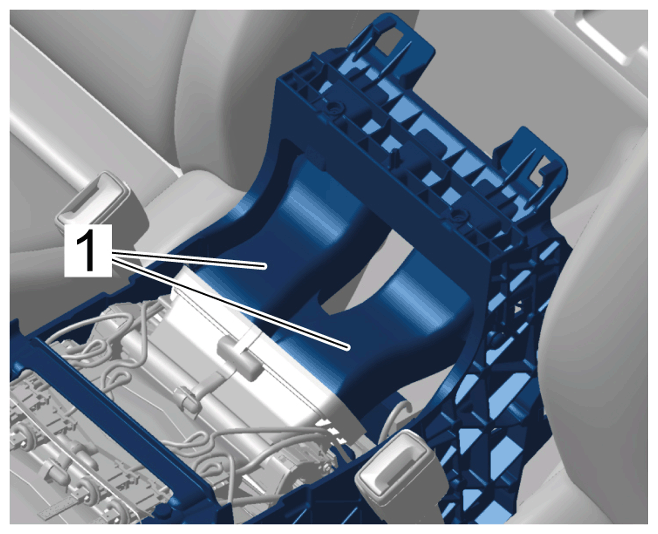

Installation position of centre console with rear air conditioning

• Installation position of centre console with rear air conditioning

1. Installation is performed in reverse order. Pay particular attention to the following:

   Tighten screws securing centre console to bracket to > Tightening torque 8 Nm (6 ftlb.)  .

   Tighten screw securing front centre console to instrument panel to > Tightening torque 4 Nm (3 ftlb.)  .

   Tighten nuts securing rear centre console to bracket to > Tightening torque 20 Nm (15 ftlb.)  .
