Reworking Glove Compartment

Information

The following work is only necessary for vehicles with air-conditioned glove compartment.

1. Make opening.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

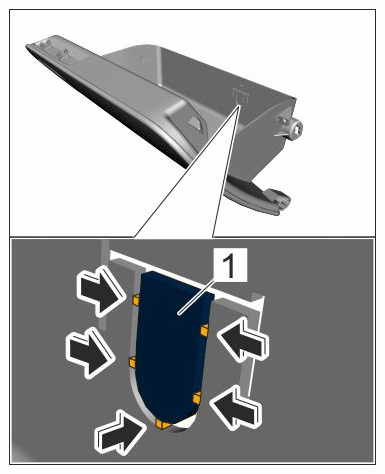

   Opening (simplified installation position shown)

   1. 1.1 Open the glove compartment.
   2. 1.2 Cut bars -Arrows-  .
   3. 1.3 Remove centre section -1-  .
2. Install valve.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

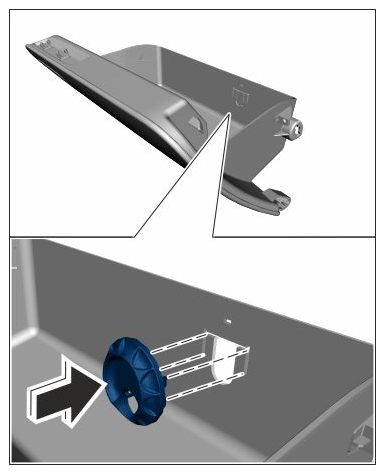

   Valve (simplified view of installation position)

   1. 2.1 Engage fastening hook of the valve fully in the glove compartment -Arrow-  .
