Removing Glove Box

Information

One screw is behind the central computer in the glove box.

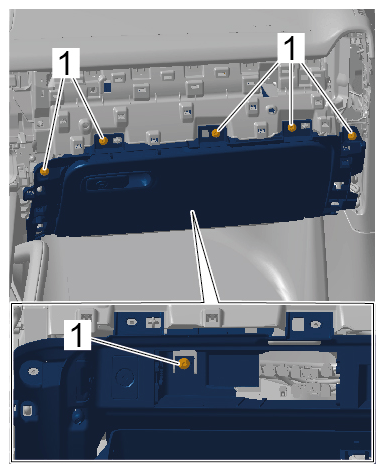

1. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Fastening screws for glove box

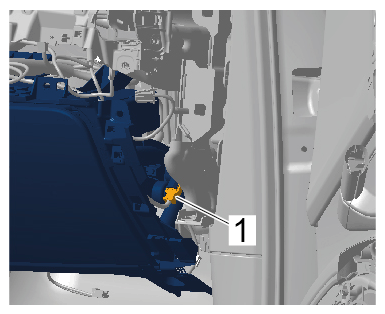

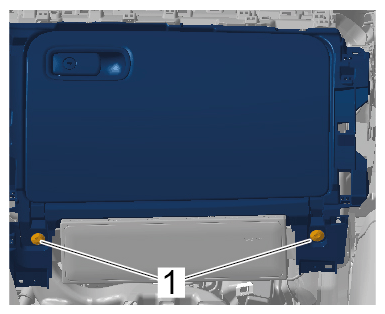

2. Unscrew fastening screws -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Screws for glove box

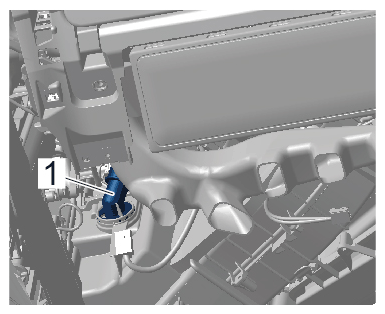

3. Release air duct -1-  and pull it off.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Air-conditioning line

4. Carefully pull out glove box and lower it slightly.

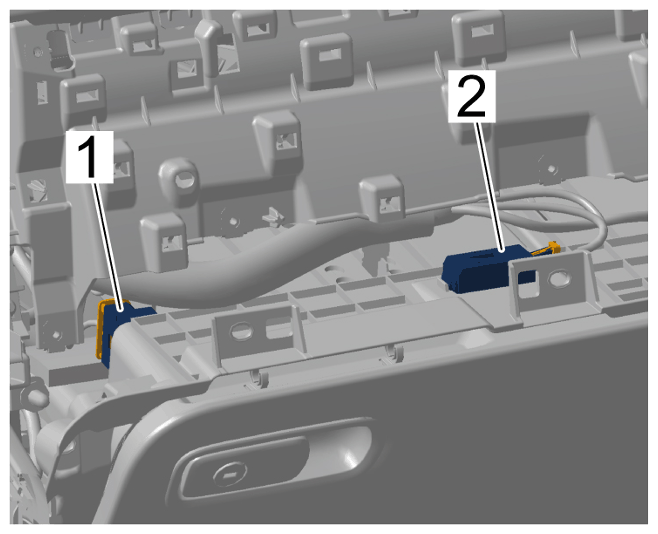

5. Release and disconnect electric plug connection on the airbag switch -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

6. Release and disconnect electric plug connection for glove box lighting -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

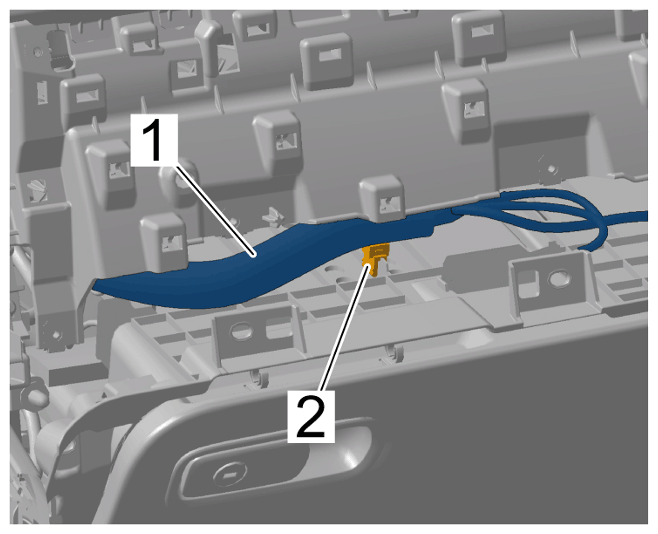

7. Unclip electric line -1-  with clip -2-  and guide electric line -1-  out of the slot.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

8. Release and disconnect electric plug connection -1-  on damper.

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Electric plug connection

9. Remove glove box.
