Installing Glove Compartment Lock

WARNING: This page is about a different variant/trim than selected.
  1. Install safety clips -1-  .

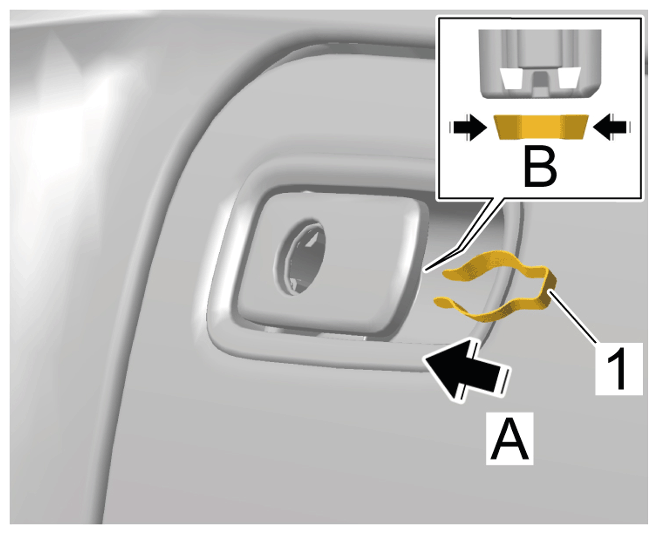

    G15237696Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Safety clips

    1. 1.1 Lift the handle.
    2. 1.2 Align safety clip -1-  with the wide opening in an upward direction -arrow B-  .
    3. 1.3 Insert safety clip -1-  into the handle -arrow A-  .
  2. Insert glove compartment lock -1-  with emergency key inserted into the handle until it engages securely.

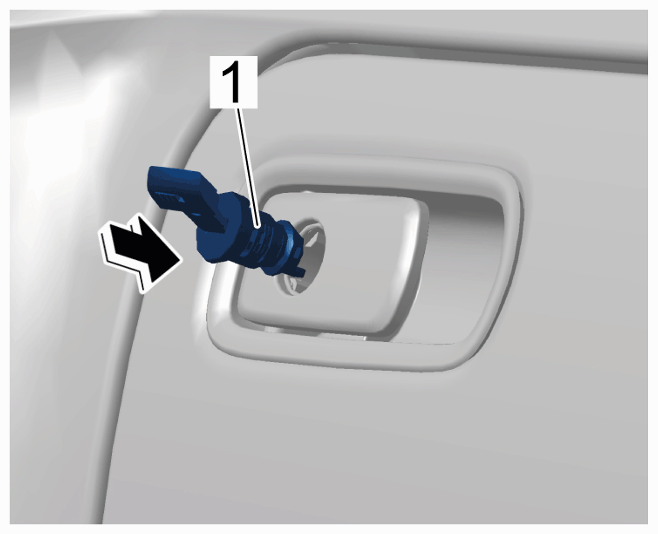

    G15237697Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Glove compartment lock

  3. Carry out a function test with the glove compartment lid open.
