Removing Inner Door Sill Trims

Information

To prevent damage, use a suitable tool as a support during removal at accessible connection points.

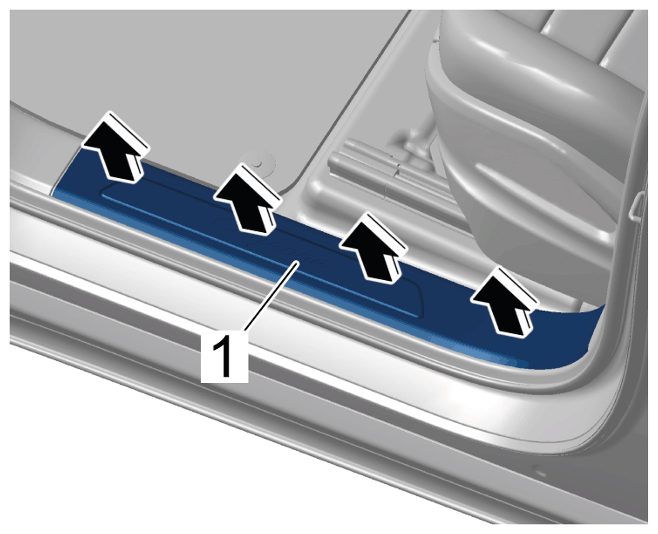

1. Unclip front inner door sill trim -1-  using a suitable tool -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front inner door sill trim

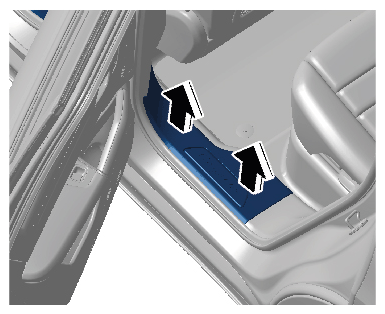

2. Unclip rear inner door sill trim using a suitable tool -Arrows-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Rear inner door sill trim

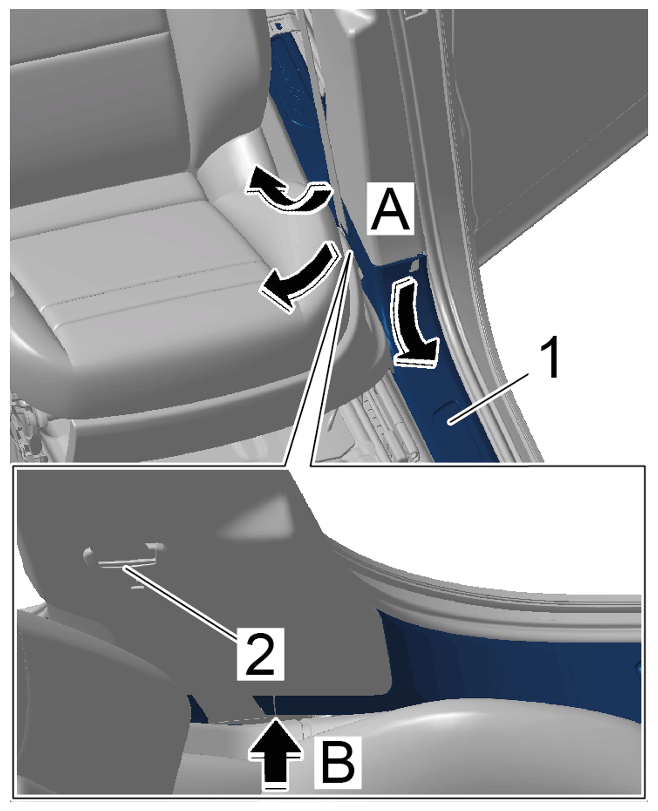

3. Remove inner door sill trim -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Inner door sill trim

   1. 3.1 Unclip inner door sill trim -1-  from the B-pillar trim panel by pulling it downwards -arrows A-  .
   2. 3.2 Unscrew inner door sill trim -1-  from the B-pillar trim panel inwards and remove it.
   3. 3.3 Guide seat belt -2-  out of the opening -B -  on the inner door sill trim -1-  .
   4. 3.4 Remove inner door sill trim -1-  .
