Installing Starter

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

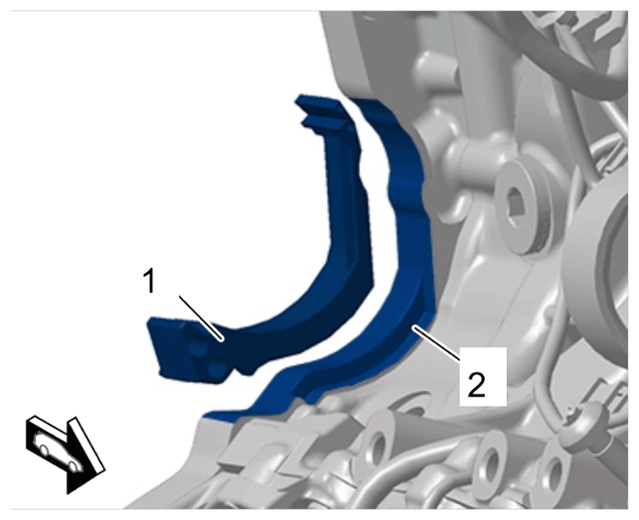

Locking element in converter area

1. 1.1  Clean the locking element in the converter area -1-  and the surface of the crankcase -2-  carefully with cleaner (Part No.: D00940104).
2. 1.2  Coat the surface of the crankcase -2-  and the opposite piece of the locking element in the converter area -1-  with a small amount of sealing compound (Part No.: 000 043 305 32).
3. 1.3  Position the locking element in the converter area -1-  and let the sealing compound dry off.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

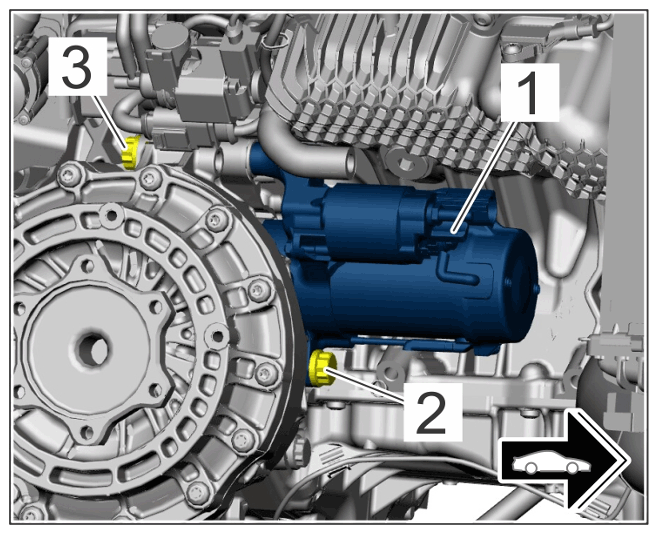

Starter screws

1. 2.1  Fit and tighten screws -2-  and -3-  .

   Screw -2-  : > Tightening torque 65 Nm (48 ftlb.)

   Screw -3-  : > Initial tightening 30 Nm (22 ftlb.)  > Final tightening + 105°  .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

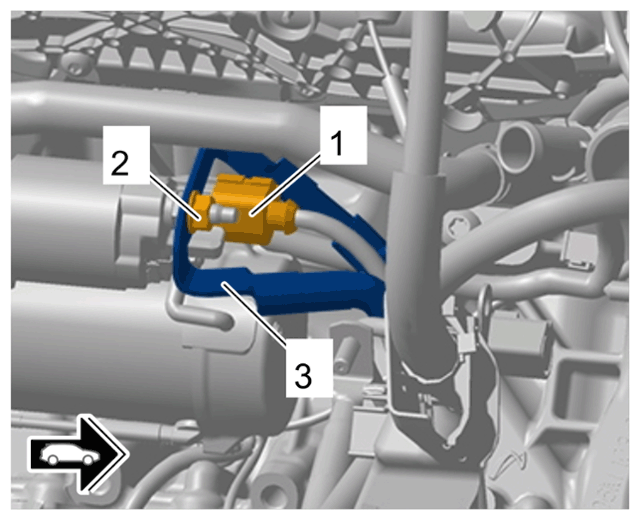

Electric lines for starter

1. 3.1  Connect and lock electric plug connection -1-  .
2. 3.2  Fit B+ line -3-  on the starter and tighten the nut -2-  .

   > Tightening torque 20 Nm (15 ftlb.)

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

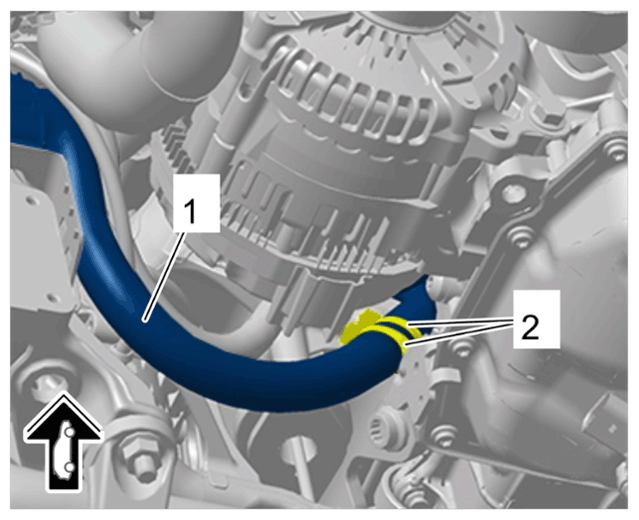

Wire harness for starter

1. 4.1  Position wire harness for starter -1-  and secure with new  tie-wraps -2-  .
