Removing Generator

WARNING: This page is about a different variant/trim than selected.

CAUTION: Hot components

Risk of burns
1. → Let hot components cool down.
2. → Wear personal protective gear.

Disconnect electric connection -1- and B+ line -3- from the generator.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

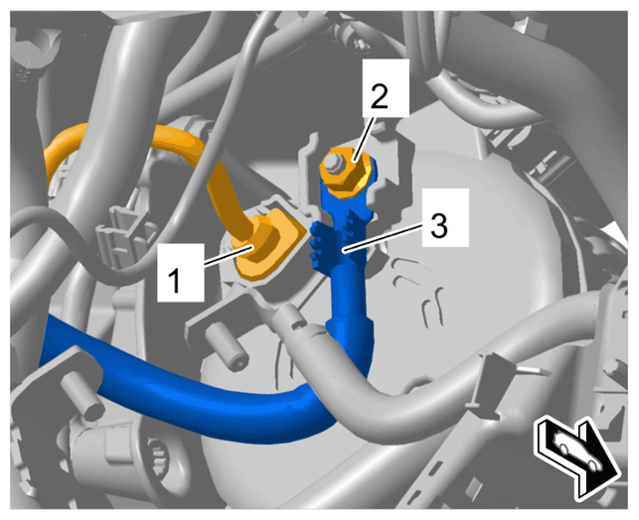

Electric plug connections for generator
1. 1.1 Unscrew nut -2- and remove B+ line -3- from the generator.
2. 1.2 Release and disconnect electric plug connection -1-
Remove generator -1-

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

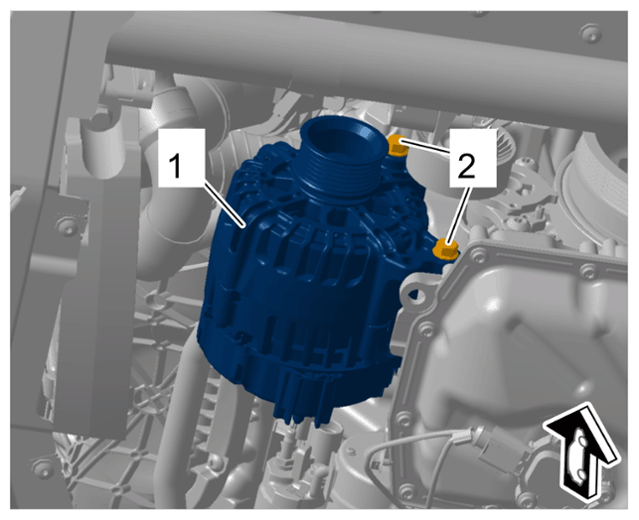

Generator
1. 2.1 Unscrew screws -2- and remove generator -1- by pulling it downwards.
