Technical Values
WARNING: This page is about a different variant/trim than selected.
| Location | Description | Type | Basic value | Tolerance 1 | Tolerance 2 |
|---|---|---|---|---|---|

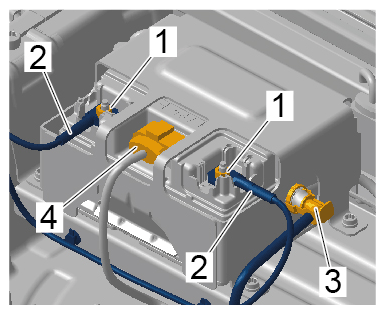

| Fastening nuts for battery terminals | item 1 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Fastening nuts |
|||||

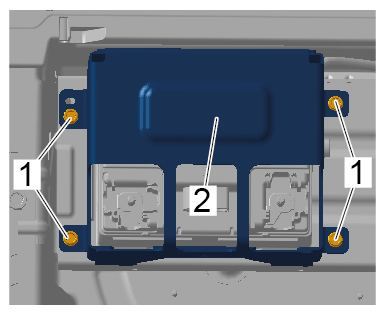

| Fastening screws for battery holder | item 1 | Tightening torque | 8 Nm (6 ftlb.) | ||
|
Battery cover |
|||||

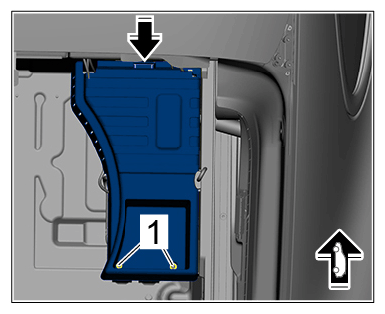

| Cover on 48-volt additional battery to body | item 1 | Tightening torque | 4.5 (3.3 ftlb) Nm | ||
|
Cover on 48-volt additional battery |
