Removing Support
WARNING: This page is about a different variant/trim than selected.

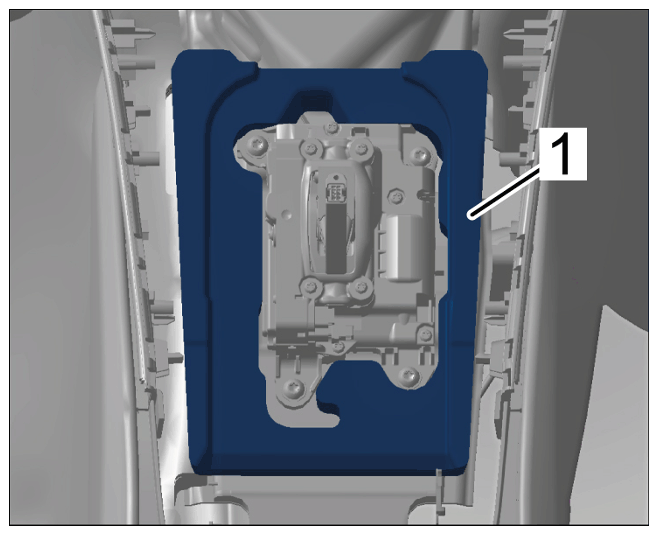

- Remove insulating material -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Insulating material

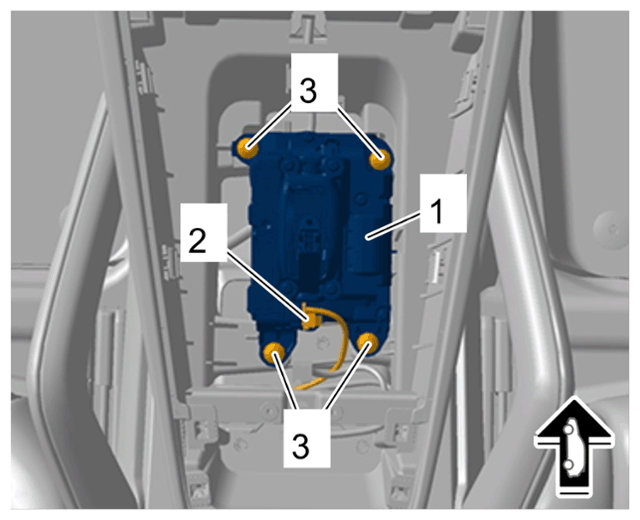

- Remove selector support -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Selector support
- 2.1
Release and disconnect electric plug connection -2-
.
- 2.2
Unscrew and remove screws -3-
.
- 2.3
Remove selector support -1-
.
