Installing Rear Lid Seal
WARNING: This page is about a different variant/trim than selected.

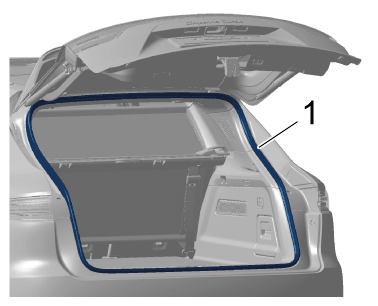

- Install rear lid seal -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear lid seal
- 1.1 Position gap in the rear lid seal -1-
so that it is centred at the top.
- 1.2 Position vent holes in the rear lid seal -1-
outwards.
- 1.3 Press rear lid seal -1-
onto the body.
- Press on rear lid seal at the rounded areas using > 9513 - puller
.
