Removing Rear Lid Hinge
WARNING: This page is about a different variant/trim than selected.
- Mark installation position of rear lid hinges -1-
at the left and right.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

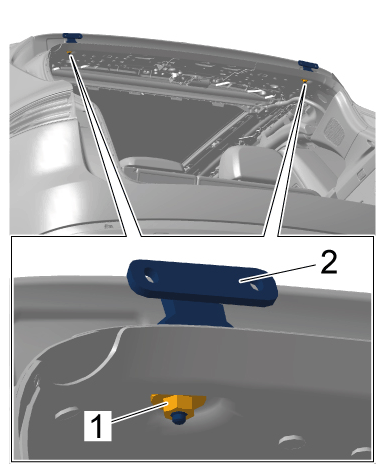

Installation position of rear lid hinge
- Unscrew nuts -1-
on rear lid hinges -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Fastening nut
- Remove rear lid hinges -2-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

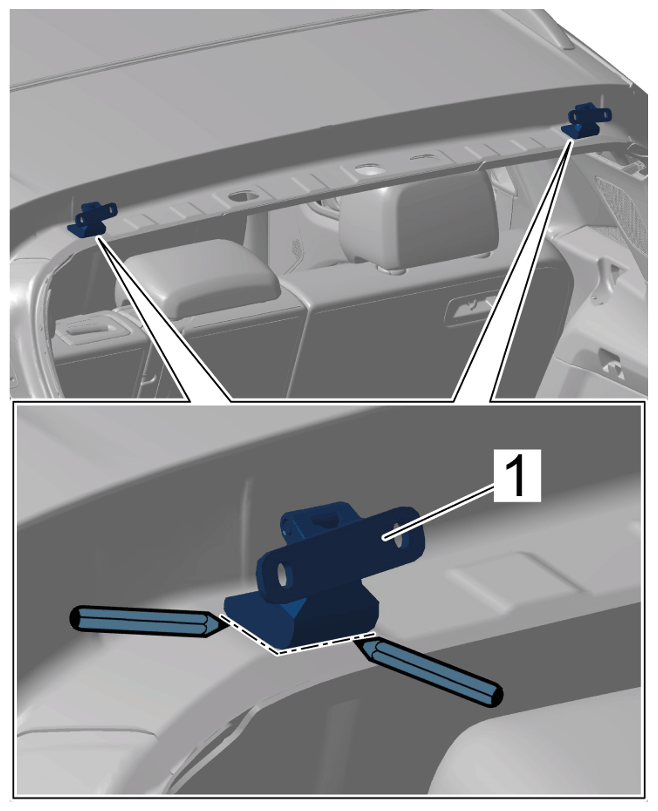

Rear lid hinge
