Installing Rear Lid Hinge

WARNING: This page is about a different variant/trim than selected.
  1. Installation is performed in reverse order. Pay particular attention to the following:

    Nut securing lid hinge to bodyshell > Tightening torque 23 Nm (17 ftlb.)

  2. Remove the marking you made earlier > Installation position of rear lid hinge  .

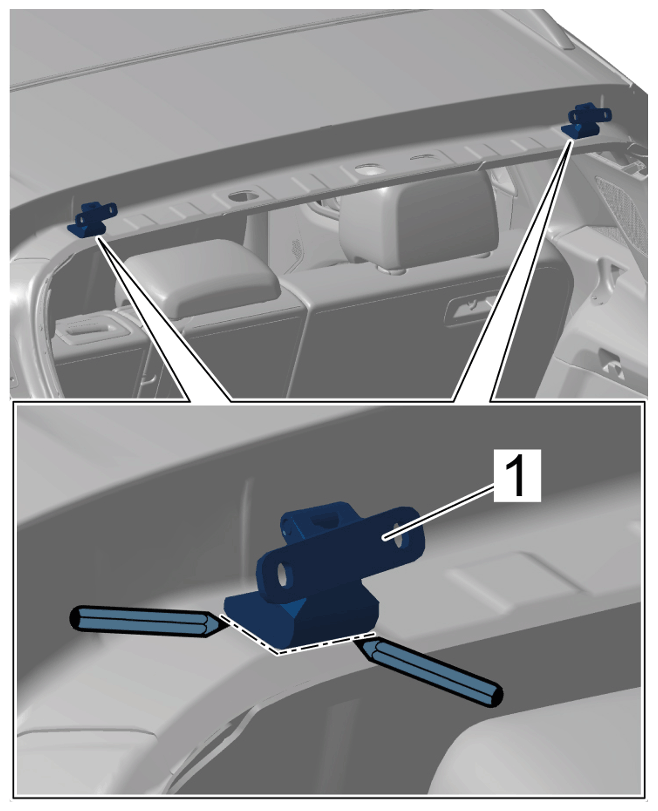

    G15260611Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Installation position of rear lid hinge
