Disassembling Rear Lid

WARNING: This page is about a different variant/trim than selected.

Remove wire harness for tailgate.
> 972719 REMOVING AND INSTALLING WIRE HARNESS FOR TAILGATE
Remove rear window.
> 648619 REMOVING AND INSTALLING REAR WINDOW
Remove rear logo.
> 665055 REPLACING REAR LOGO
Remove antenna amplifier.
> 918419 REMOVING AND INSTALLING ANTENNA AMPLIFIER
Remove control unit for rear lid.
> 556819 REMOVING AND INSTALLING CONTROL UNIT FOR REAR LID
Remove tail light (rear lid)
> 943119 REMOVING AND INSTALLING TAIL LIGHT (REAR LID)
Remove upper part of rear lid lock.
> 558719 REMOVING AND INSTALLING UPPER PART OF REAR LID LOCK
Remove motor for closing aid.
> 557419 REMOVING AND INSTALLING MOTOR FOR LID CLOSING AID

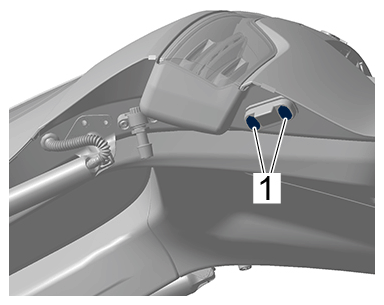

Unclip covers -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Covers

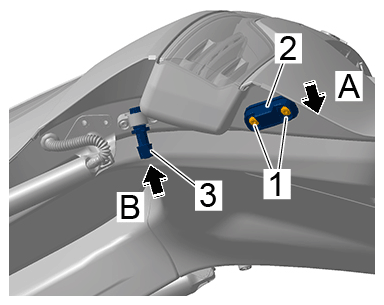

Unscrew screws -1- and remove guide wedge -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Guide wedge screws

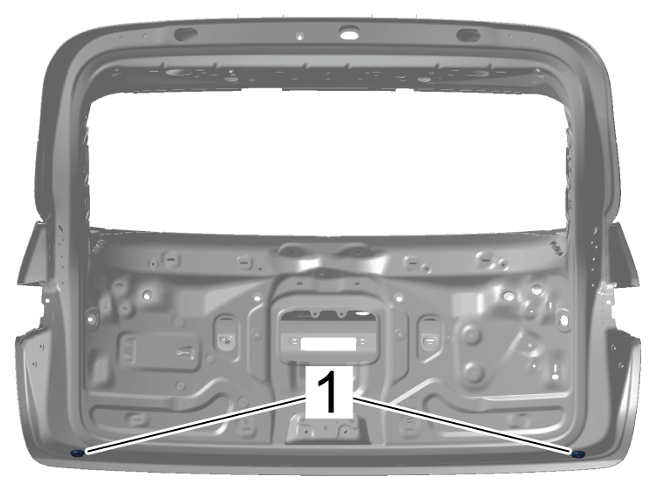

Unscrew adjusting buffer -3- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Adjusting pads

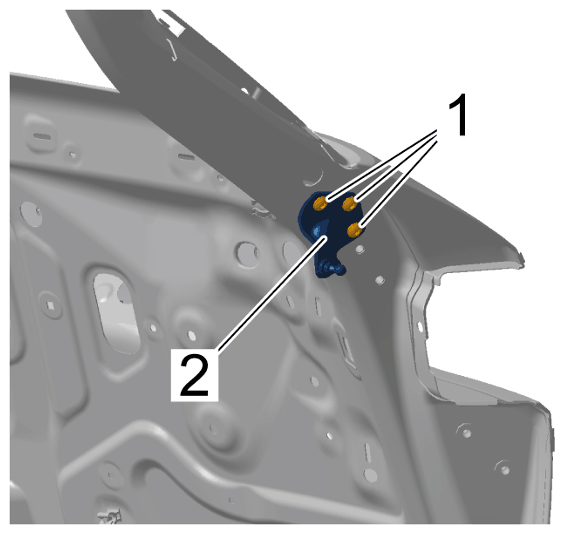

Unscrew screws -1- and remove ball joint -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Ball joint screws

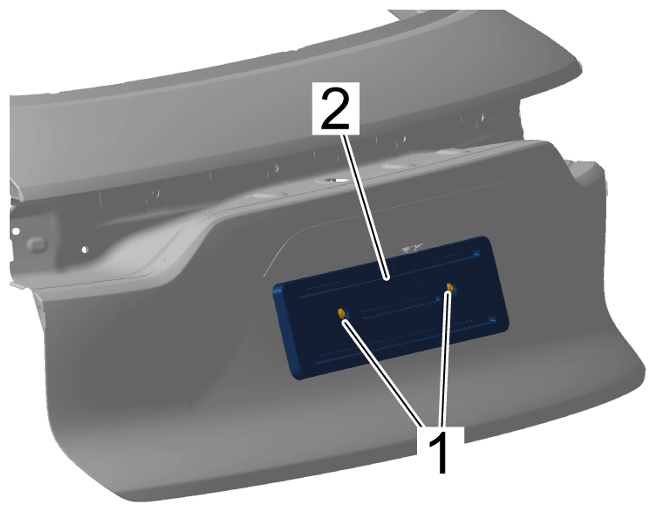

Unscrew screws -1- and remove number plate cover -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Number plate cover

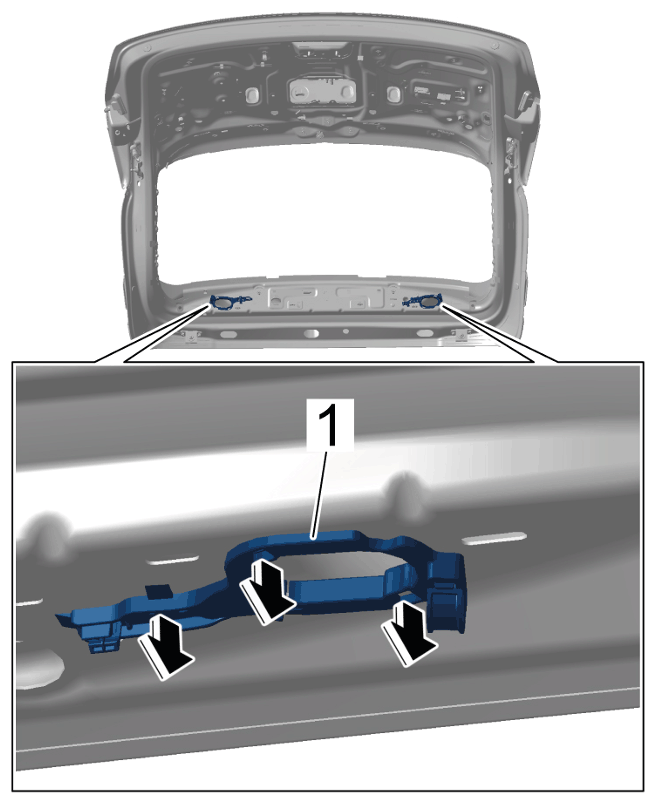

Unclip cable guides -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cable guides
Remove rubber sleeves -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rubber sleeves
