Technical Values

WARNING: This page is about a different variant/trim than selected.
Location Description Type Basic value Tolerance 1 Tolerance 2
Rear lid to lid hinge Item 1 Tightening torque 12 Nm (9 ftlb.)

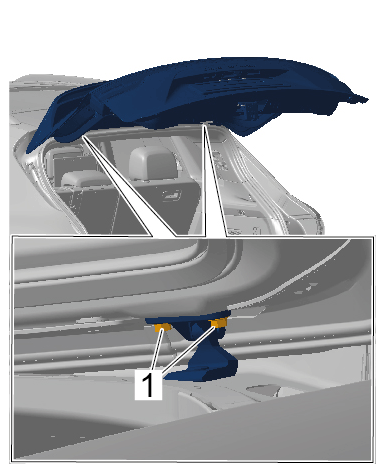

G15260592Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Fastening screws
