Removing Rear Panel

WARNING: This page is about a different variant/trim than selected.

Information

The help of another person is required to prevent the rear lid from closing accidentally.

  1. Unscrew fastening screws -1-  .

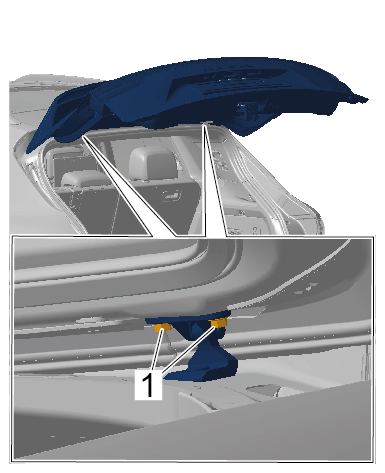

    G15260594Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening screws

    Information

    The help of another person is required.

  2. Remove rear lid.
