Technical Values

WARNING: This page is about a different variant/trim than selected.

Location	Description	Type	Basic value	Tolerance 1

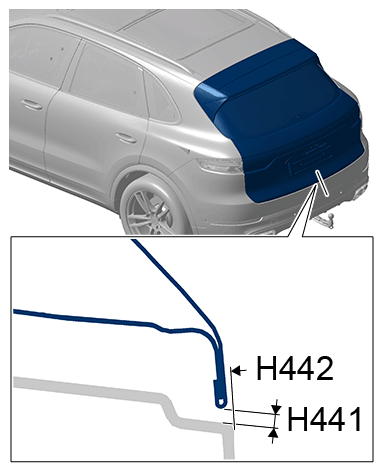

Rear lid to rear apron (H441)		Gap dimension	4 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron (H442)	Offset	Gap dimension	1 mm	+ 1.4 mm,- 1.8 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

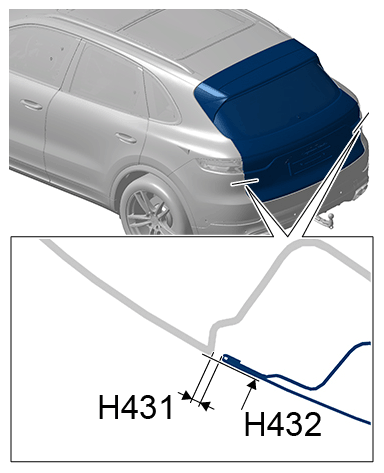

Rear lid to rear apron, side (H431)		Gap dimension	3.5 mm	+/- 1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to rear apron, side (H432)	Offset	Gap dimension	0.7 mm	+ 0.6 mm,- 1.1 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

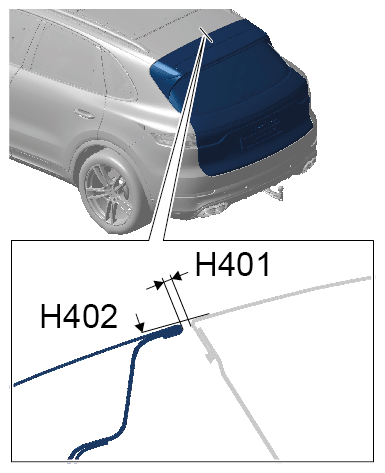

Rear lid to roof (H401)		Gap dimension	5.5 mm	+ 1.5 mm,- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension
Rear lid to roof (H402)	Offset	Gap dimension	- 1.2 mm	+ 1 mm,- 0.5 mm
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Gap dimension

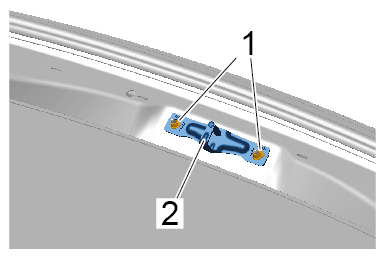

Rear lock lower part to rear lock carrier	Item 1	Tightening torque	21 Nm (16 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Nuts

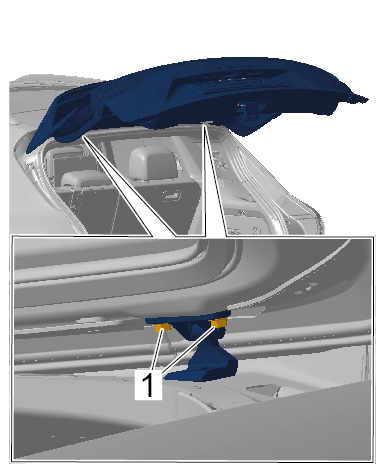

Rear lid to lid hinge	Item 1	Tightening torque	12 Nm (9 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws

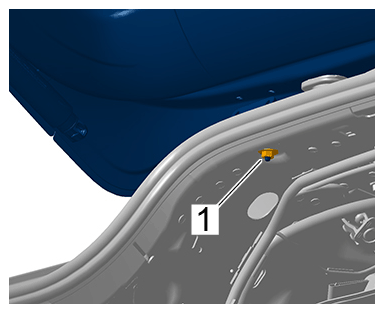

Rear lid hinge to bodyshell	Item 1	Tightening torque	23 Nm (17 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening nut

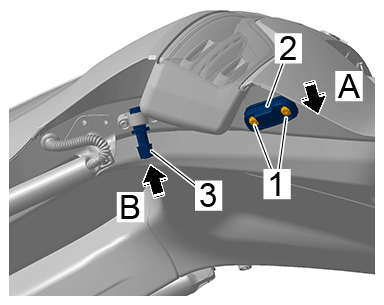

Guide wedge to rear lid	Item 1	Tightening torque	6 Nm (4.5 ftlb.)
Courtesy of PORSCHE CARS NORTH AMERICA, INC. Fastening screws
