Removing Lower Part Of Lid Lock At Rear Warning

WARNING: This page is about a different variant/trim than selected.
WARNING: Moving components
  • Danger of limbs being trapped or severed
    • → Do not reach into the danger area.
    • → Secure the system to prevent it from being activated accidentally.
    • → Keep third parties away from the danger area.

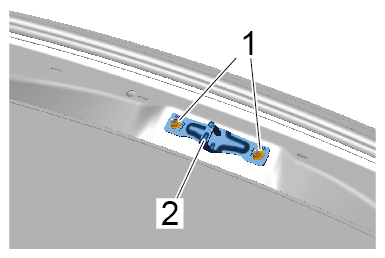

  1. Unscrew fastening nuts -1-  and remove lower part of rear lid lock -2-  .
    G15260560Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Fastening nuts
