Removing Actuating Cylinder For Rear Lid Warning Caution

WARNING: This page is about a different variant/trim than selected.
CAUTION: Incorrect handling of actuating cylinders
  • Actuating cylinders can burst
  • Risk of eye injuries
  • Risk of bruising
    • → The actuating cylinders must be in idle state in order to remove them.
    • → Open the lid fully.
    • → Ensure the end position of the lid manually.
    • → Secure the lid after removing the actuating cylinders to prevent it from closing accidentally.
    • → Do not use force when opening the actuating cylinders due to the high internal pressure.

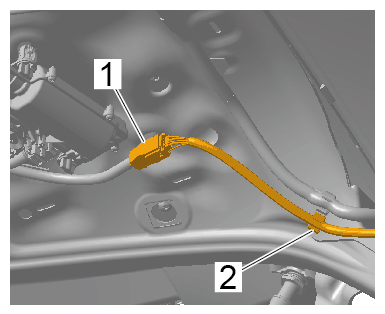

  1. Release and disconnect electric plug connection -1-  .
    G15260549Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

  2. Unclip electric line from holder -2-  .
    G15260550Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric line

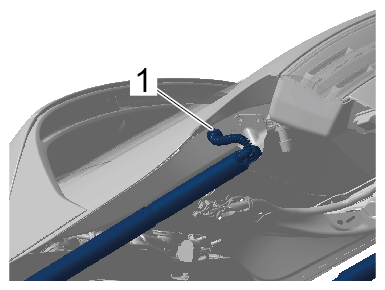

  3. Loosen rubber sleeve -1-  and guide out electric wire harness.
    G15260551Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Rubber sleeve

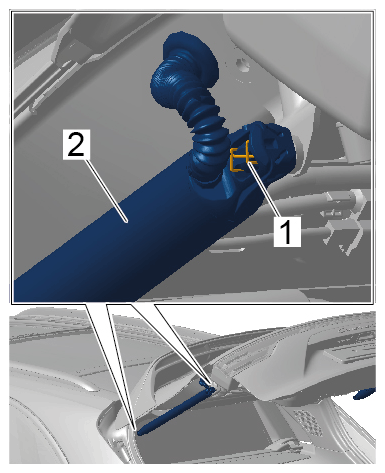

  4. Release safety clips -1-  using a suitable tool.
    G15260552Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Safety clips

    Information

    The help of another person is required to prevent the rear lid from closing accidentally.

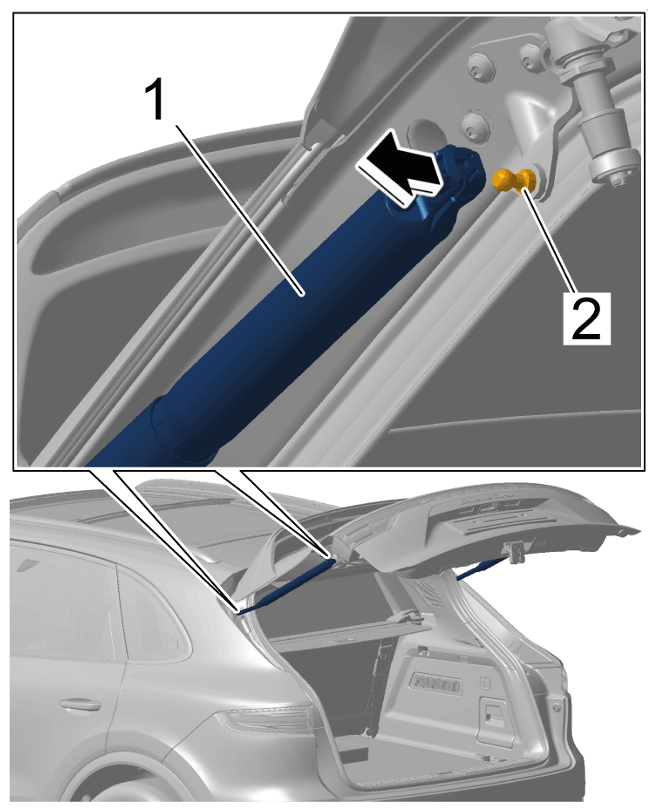

  5. Pull actuating cylinder for rear lid -1-  off the ball pin -2-  (-Arrow-  ) and remove it.
    G15260553Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Actuating cylinder for rear lid
