Emergency Release - Rear

WARNING: This page is about a different variant/trim than selected.

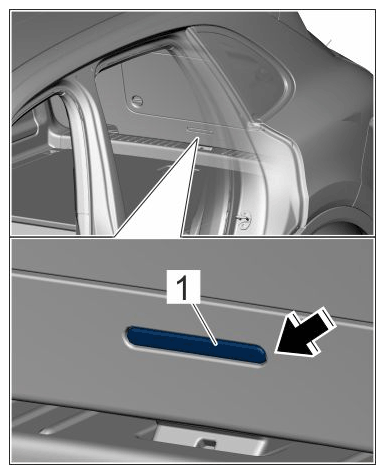

  1. Remove trim -1-  .
    G15260542Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Cover

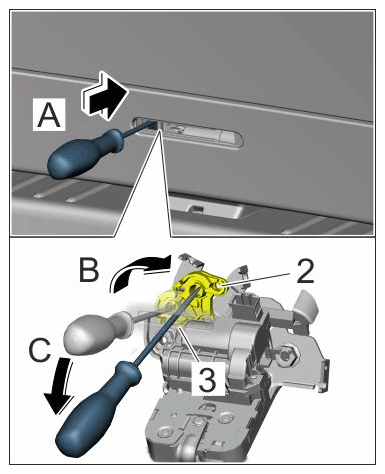

  2. Release lock.
    G15260543Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Release

    1. 2.1 Insert a screwdriver into the slot on the trim panel -arrow A-  .
    2. 2.2 Guide screwdriver through the slot on the cover plate -3-  .
    3. 2.3 Insert screwdriver into the release -2-  .
    4. 2.4 Support the screwdriver on the edge of the plate -3-  .
    5. 2.5 Use screwdriver to turn release in direction of arrow -arrow B-  .

    Tilt screwdriver downwards while doing so -arrow C-  .

    Lock unlocks audibly.

  3. Open the cover from outside.
