Removing Switching Element For Filler Flap
WARNING: This page is about a different variant/trim than selected.

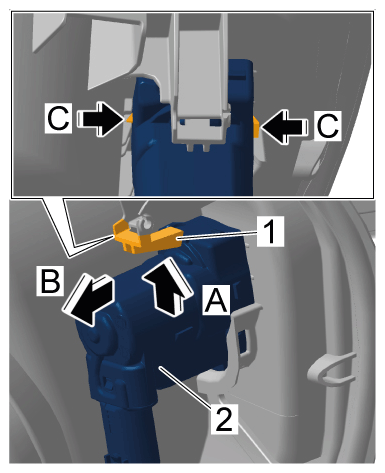

- Press retaining lug -1-
upwards -arrow A-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Filler flap switching element
- Tilt filler flap switching element -2-
to the rear -arrow B-
and remove it from the retaining lugs -arrow C-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Filler flap switching element
