Removing Filler Flap (Cap)

WARNING: This page is about a different variant/trim than selected.

Information

The following description is shown as an example for the fuel filler flap (cover). All actions are also valid for work on the flap side part (cover). The illustrations are shown as mirror images.

  1. Open the filler flap.
  2. Release catch -1-  using a suitable tool and pull off cover -2-Arrow-  .

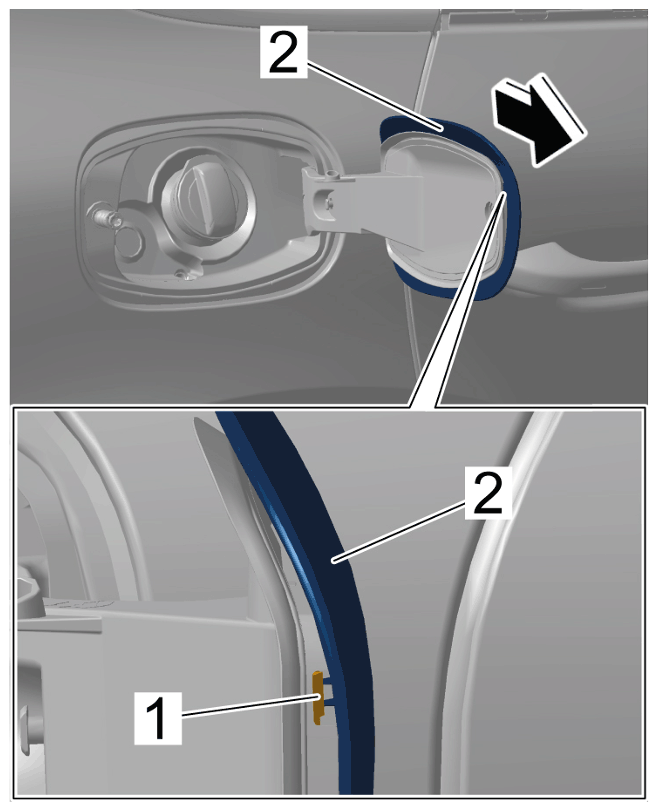

    G15260528Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Filler flap (cap)
