Removing Front Lid Seal

WARNING: This page is about a different variant/trim than selected.

Information

During removal, the seal must not come into contact with hot engine components or adjacent units. This can cause damage to the seal.

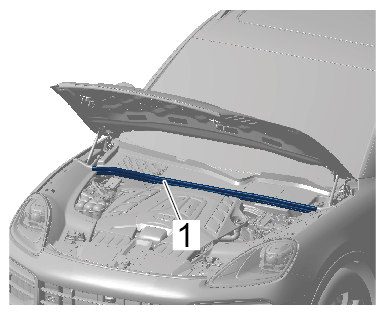

Pull off front lid seal -1- towards the engine and remove it.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid seal
