Installing Front Lid Seal

WARNING: This page is about a different variant/trim than selected.

Information

Before refitting the seal, check it for damage and replace it if necessary.
Fit seal without additional sealing compound.
During installation, keep the seal away from hot engine components because otherwise the seal can become damaged.

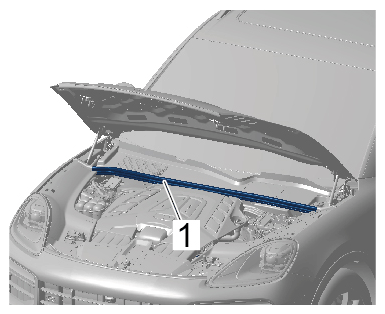

First fit the ends of the front lid seal -1- and then press the remaining centre part on evenly.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Front lid seal
