Removing Front Lid

WARNING: This page is about a different variant/trim than selected.

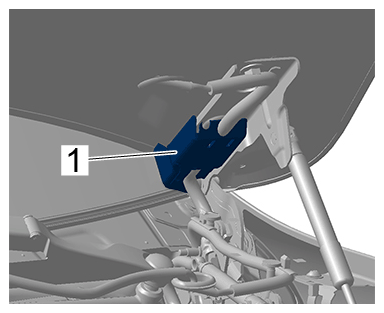

Remove cable cover -1- from hinge.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

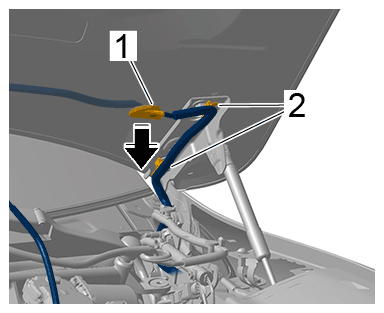

Disconnect windscreen washer system hose from front lid.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose
1. 2.1 Pull grommet -1- out of the front lid -Arrow- .
2. 2.2 Unclip hose fastenings -2- on the hinge.
3. 2.3 Pull hose out of the lid.
Information

The help of another person is required.
Get another person to hold the front lid to prevent it from falling down.
Information

The help of another person is required.

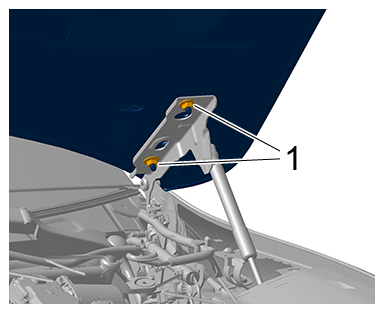

Unscrew nuts -1- on the front lid and remove front lid.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Nuts
