Adjusting Front Lid

Information

• Set gap dimensions on the lids, doors and covers, or accessories in accordance with the gap specifications.
• Given a clearance in the openings that is too great or too small, the movable body parts or the accessories must be centred accordingly.
• Ensure that the gaps do not run in a wedge-shaped fashion or do not narrow at local points.
• You can use > VAS 6936 - Adjusting gauge , > VAS 6937 - Adjusting gauge , > VAS 6938 - Adjusting gauge for this.
• The given values are guidelines, which should be observed as far as possible.
• The guidelines apply to repair and assembly work.

1. Adjust the front lid in XY direction.

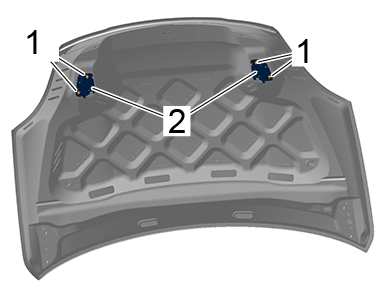

   1. 1.1 Loosen fastening nuts -1-  on upper parts of lock -2-  and tighten hand-tight.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Lock upper part

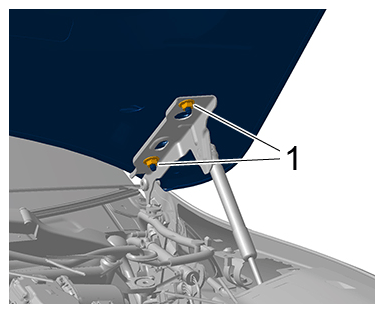

   2. 1.2 Loosen fastening nuts -1-  on front lid hinges at both sides and tighten hand-tight.

      Courtesy of PORSCHE CARS NORTH AMERICA, INC.

      Front lid hinge

   3. 1.3 Close the front lid.
   4. 1.4 Adjust gap dimensions by moving the front lid.

      > Gap dimension 2.9 mm +/- 0.7 mm  > Gap dimension 2.9 mm +/- 1 mm  > Gap dimension 2.9 mm +/- 0.5 mm

   5. 1.5 Open the front lid.
   6. 1.6 Tighten fastening nuts on upper parts of lock to > Tightening torque 8 Nm (6 ftlb.)  .
   7. 1.7 Tighten fastening nuts for front lid hinges to > Tightening torque 24 Nm (18 ftlb.)  .

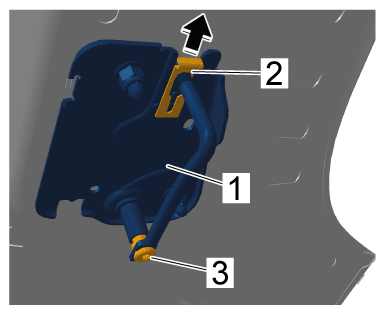

2. Adjust the front lid in Z direction at upper part of lock -1-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Lock upper part

   1. 2.1 Loosen clip -2-  from upper part of lock -1-Arrow-  .
   2. 2.2 Set gap dimensions by turning the screw -3-  .

      > Gap dimension 1 mm +/- 0.8 mm  > Gap dimension 0.3 mm +/- 0.5 mm

   3. 2.3 Push clip -2-  into upper part of lock -1-  .
   4. 2.4 Close the front lid and check gap dimensions.

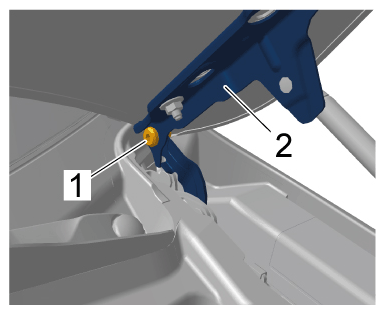

3. Adjust the front lid in Z direction at the front lid hinge -2-  .

   Courtesy of PORSCHE CARS NORTH AMERICA, INC.

   Front lid hinge

   Information

   The screw must only be loosened because otherwise the thread in the front lid hinge will be damaged.

   1. 3.1 Loosen screw -1-  on front lid hinge -2-  and tighten hand-tight.
   2. 3.2 Close the front lid.
   3. 3.3 Adjust gap dimensions by moving the front lid.

      > Gap dimension 0.3 mm +/- 0.5 mm

   4. 3.4 Open the front lid.
   5. 3.5 Tighten screw -1-  on front lid hinge -2-  .
