Removing Switch For Memory Seat Adjustment

WARNING: This page is about a different variant/trim than selected.
NOTE: Voltage peaks
  • Risk of damage to electrical load or to the control unit
    1. → Switch off ignition and keep transmitter key outside of the transmission range (at least 5 m).
    2. → Switch off electrical loads before disconnecting or removing them.

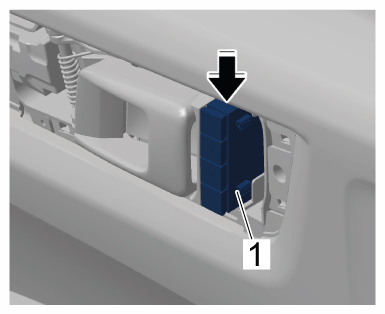

  1. Unclip switch for memory seat adjustment -1-  using a suitable tool -Arrow-  .
    G15239952Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch for memory seat adjustment

  2. Release and unplug electric plug connection -1-  .
    G15239953Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

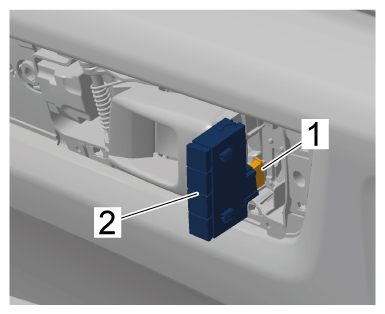

  3. Remove switch for memory seat adjustment -2-  .
    G15239954Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Switch for memory seat adjustment
