Removing Rear-Seat Headrest

WARNING: This page is about a different variant/trim than selected.
  1. Actuate release -arrow A-  and adjust headrest on rear seat -1-  to fully up position -arrow B-  .
    G15239938Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headrest on rear seat

  2. Pull rear seat (middle seat) headrest out of the backrest frame.
  3. Only for headrest on rear seat at the left and right:

    Remove rear-seat headrest -1-  .

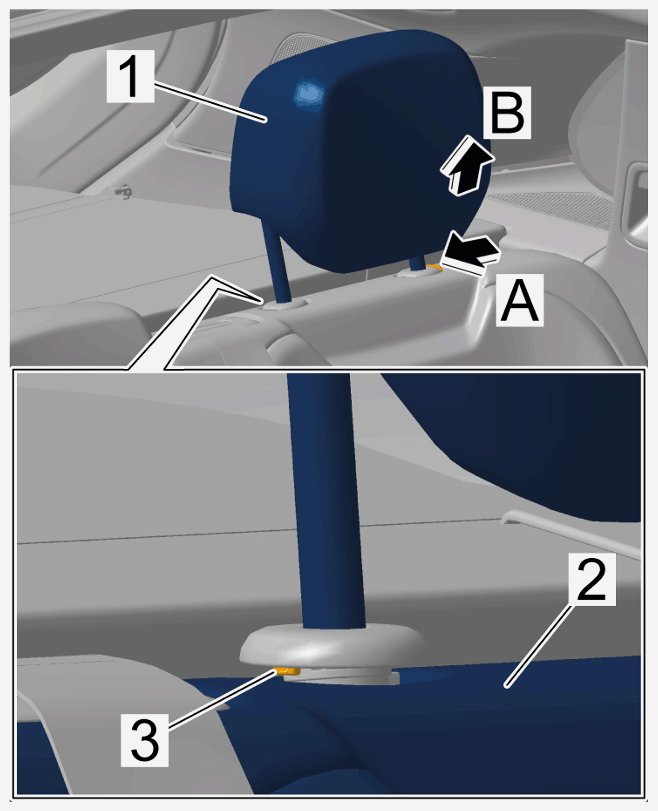

    G15239939Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Headrest on rear seat

    1. 3.1  Press down padding -2-  near the right headrest guide.
    2. 3.2  Actuate locking mechanism -3-  and release -arrow A-  and pull rear seat headrest -1-  out of the backrest frame -arrow B-  .
