Removing Front-Seat Headrest

WARNING: This page is about a different variant/trim than selected.

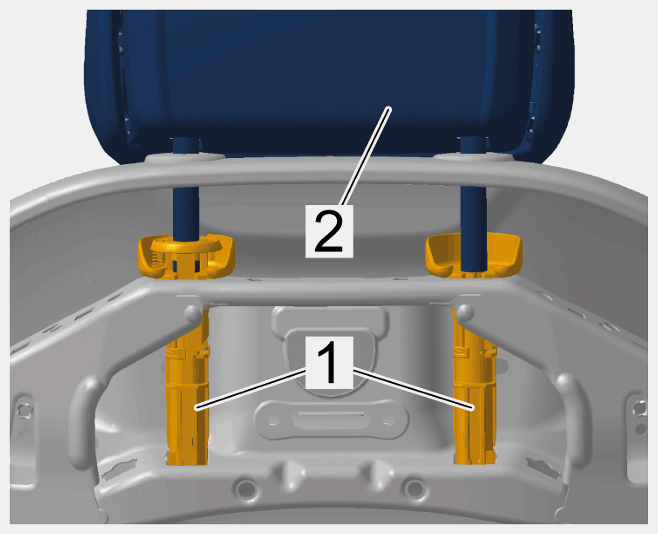

  1. Press release mechanism on the left headrest guide -1-  and pull out front-seat headrest -2-  with a strong upward movement.
    G15239942Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Front-seat headrest
