Removing Motor For Air Cushion

WARNING: This page is about a different variant/trim than selected.
  1. Release and disconnect electric plug connection -1-  on motor for air cushion -3-  .
    G15239925Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Electric plug connection

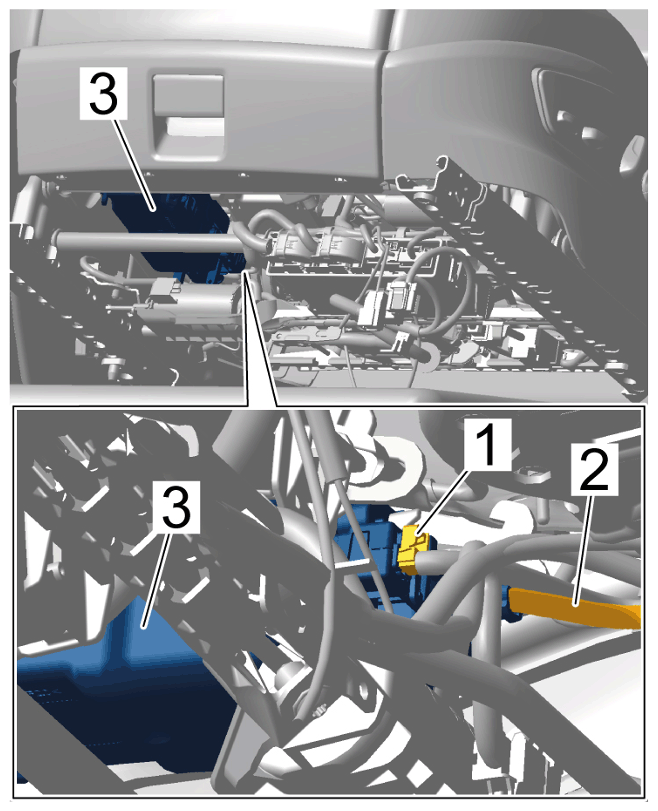

  2. Release hose connection on air line -2-  and pull it off the air cushion motor -3-  .
    G15239926Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Air line

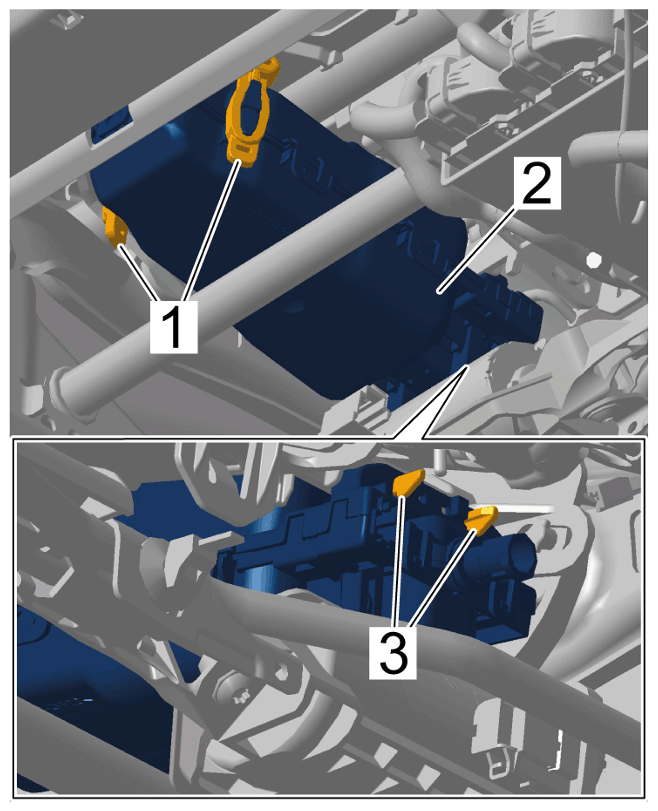

  3. Remove motor for air cushion -2-  .
    G15239927Courtesy of PORSCHE CARS NORTH AMERICA, INC.

    Motor for air cushion

    1. 3.1  Disengage clips -1-  on motor for air cushion -2-  .
    2. 3.2  Push motor for air cushion -2-  forward and unclip and remove it from the guides -3-  .
