Removing Backrest Cover

WARNING: This page is about a different variant/trim than selected.

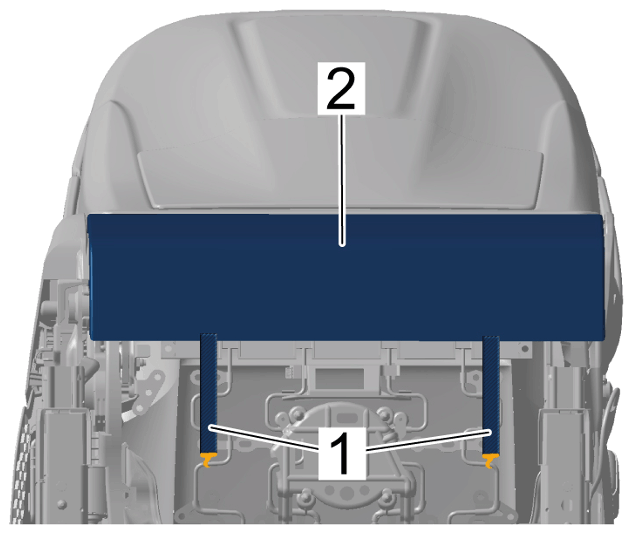

Disengage rubber straps -1- and fold over tab -2- on seat cover.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tab

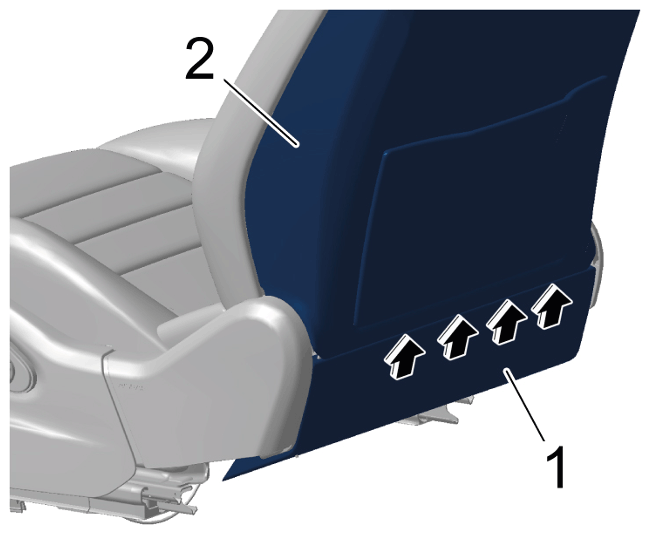

Use a flat assembly wedge to release the locking lugs -Arrows- and detach the seat cover on the backrest at the bottom -1- from the backrest cover -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat cover on backrest, bottom

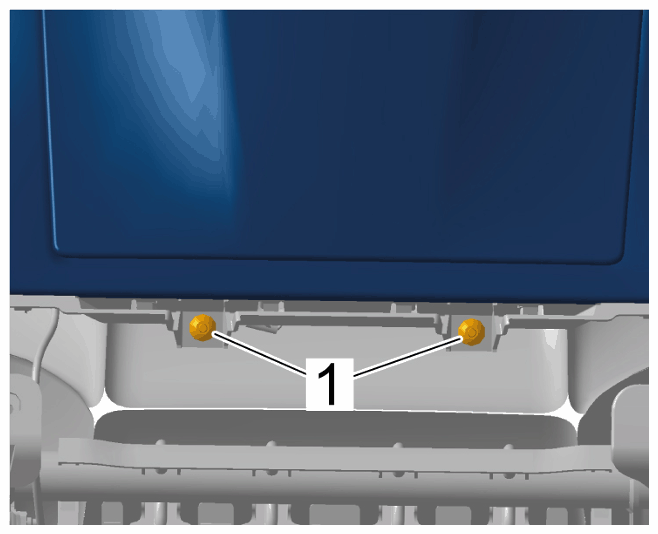

Remove expanding clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Expanding clips

Information

Failure to release the locking lugs will result in high removal forces and will damage the seat cover on the backrest.

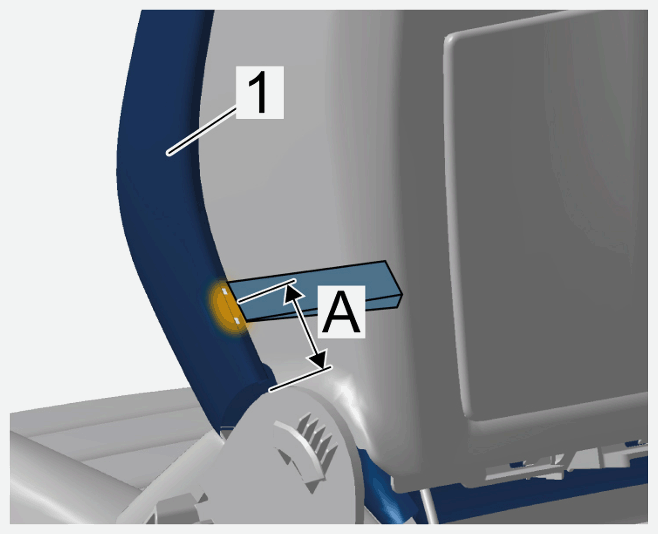

Use a flat assembly wedge to release the locking lugs at the very bottom at the left and right and detach seat cover on backrest -1- .
> Distance A = 30 mm

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Lowest locking lug securing seat cover to backrest cover
1. 4.1 Loosen locking lug -1- in the direction of the centre of the backrest. -arrow-
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking lug

Information

Failure to release the locking lugs will result in high removal forces and will damage the seat cover on the backrest.

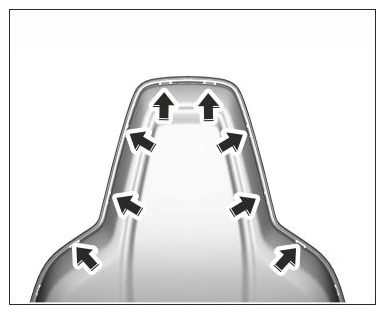

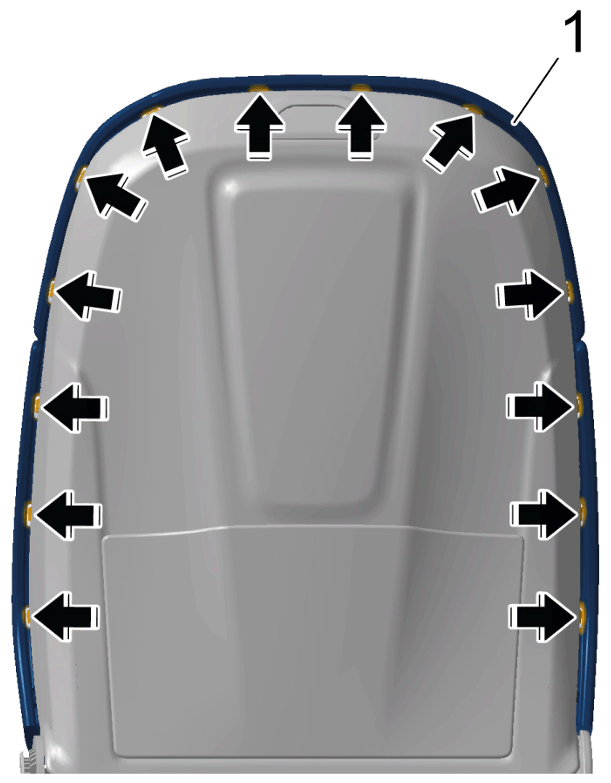

Release all other locking lugs -arrow- using a flat assembly wedge and detach seat cover on backrest -1- from the backrest cover all the way around.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat cover for backrest on backrest cover

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Seat cover for backrest on backrest cover (also for integrated headrest)

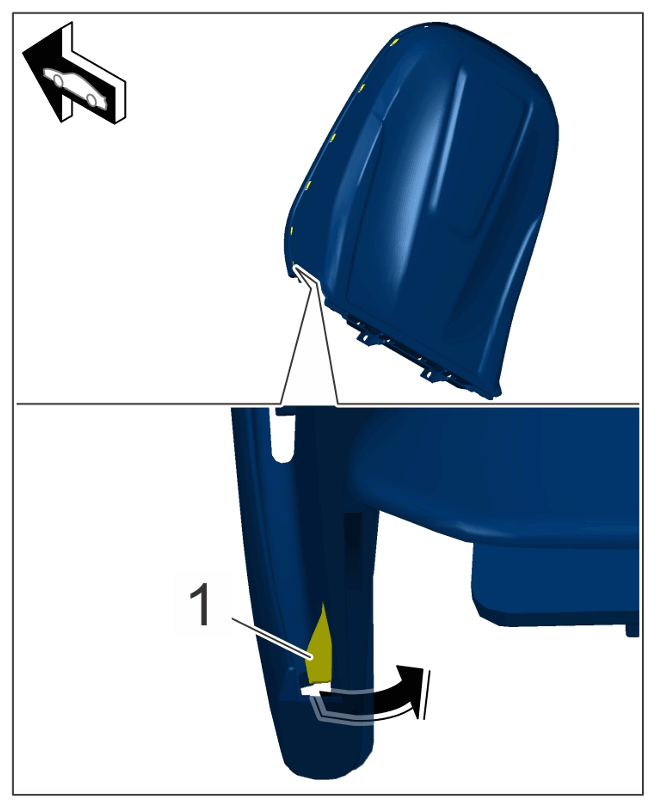

1. 5.1 Loosen locking lug -1- in the direction of the centre of the backrest. -arrow-
Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking lug

Loosen cover on headrest. (only for integrated headrest)

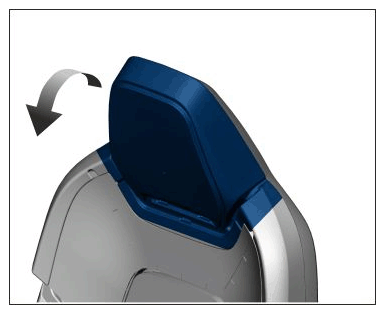

6.1 Fold cover inwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover on headrest

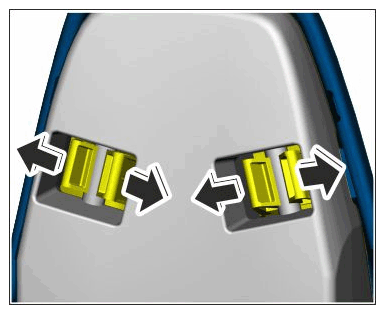

6.2 Loosen locking mechanism on the clip.
1. 6.2.1 Open up clips and press cover to the rear.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking mechanism on clip

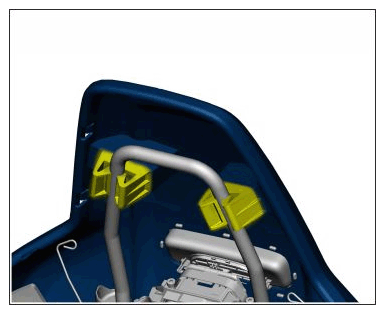

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Locking mechanism on clip (shown without cushion)

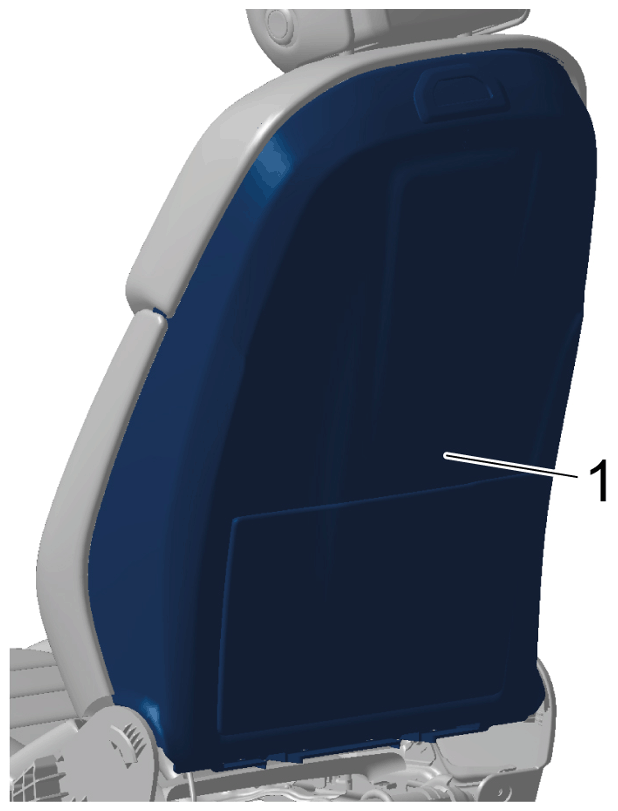

Pull backrest cover -1- at the bottom slightly to the rear and then remove it by pulling it downwards.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest cover
