Removing Backrest Frame

WARNING: This page is about a different variant/trim than selected.

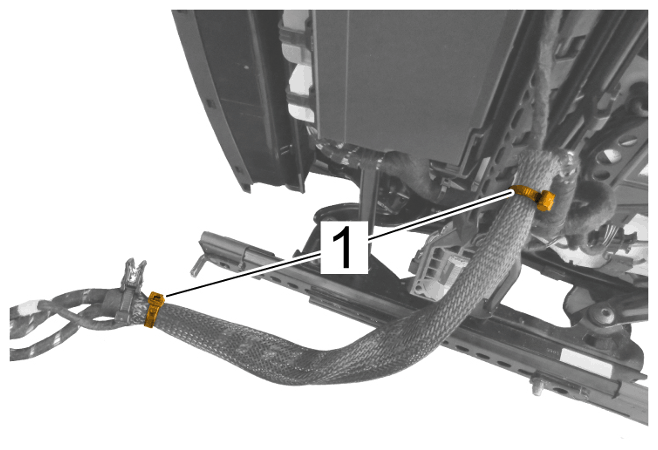

Cut tie-wrap -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Tie-wrap

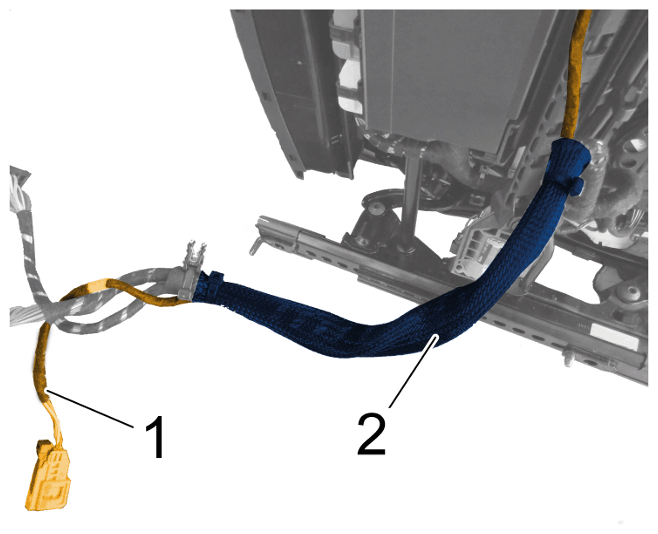

Guide line connection for side airbag -1- through the anti-chafing element -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Line connection for side airbag
Unclip clips -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Clips

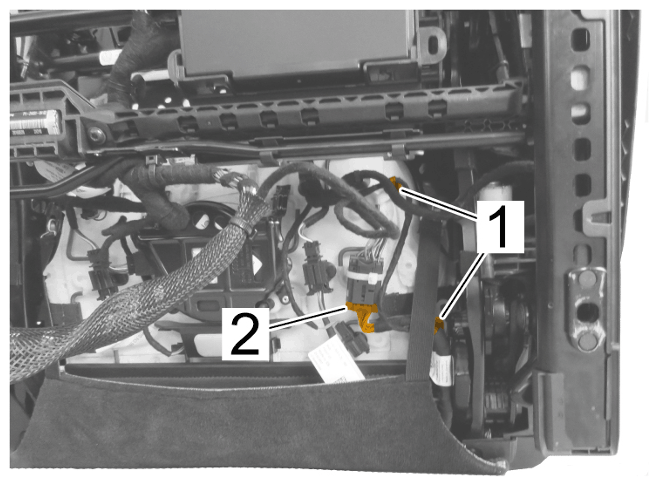

Release and disconnect electric plug connection -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Electric line
Only for vehicles with front 18-way sports seats (I-no. Q1J):

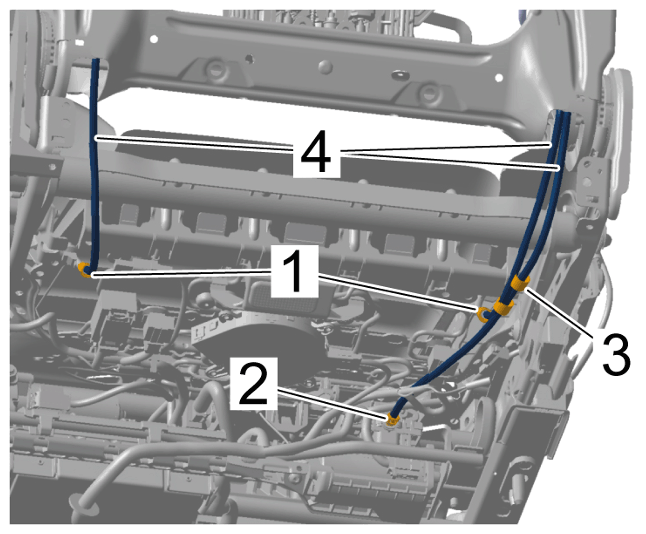

Disconnect air lines -4- under the seat frame.

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Hose connections
1. 5.1 Release and disconnect hose connections -1- from air cushion for seat.
2. 5.2 Release and disconnect hose connection -2- from motor for air cushion.
3. 5.3 Unclip line bracket -3- at the seat frame.
4. 5.4 Expose air lines -4- towards the rear.
Drill out rivet -1- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Rivet

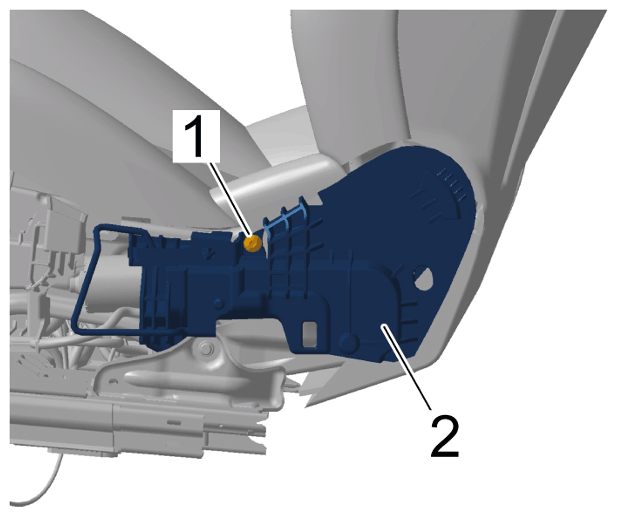

Remove trim -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Cover

Information

The help of another person is required.

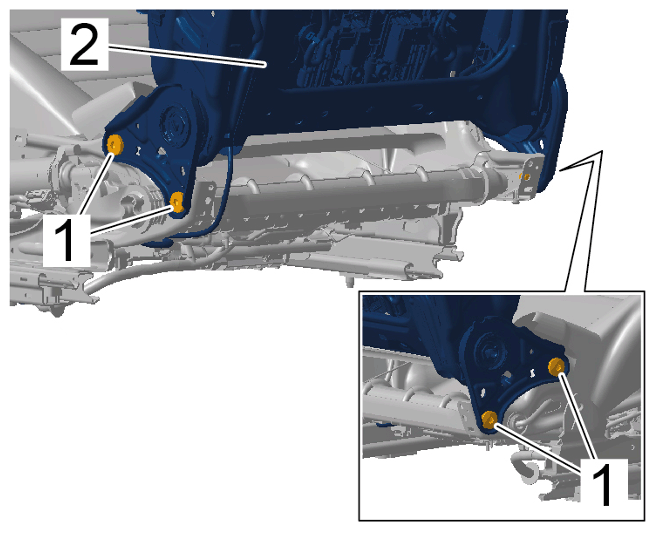

Unscrew screws -1- and remove backrest frame -2- .

Courtesy of PORSCHE CARS NORTH AMERICA, INC.

Backrest frame
