Installing Air Cushion For Backrest
WARNING: This page is about a different variant/trim than selected.
- Installation is performed in reverse order. Pay particular attention to the following:
Insert guide -5-
into the backrest frame.
Tightening torque for screw securing air cushion for backrest to backrest frame. > Tightening torque 2.3 Nm (1.8 ftlb.)
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|

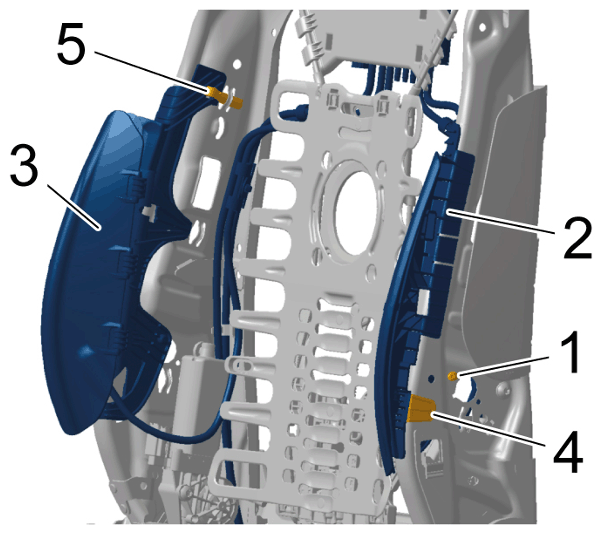

Air cushion for backrest
