Removing Rear Trim Panel (Inner, 1/3-Split Folding Rear Seat)
WARNING: This page is about a different variant/trim than selected.

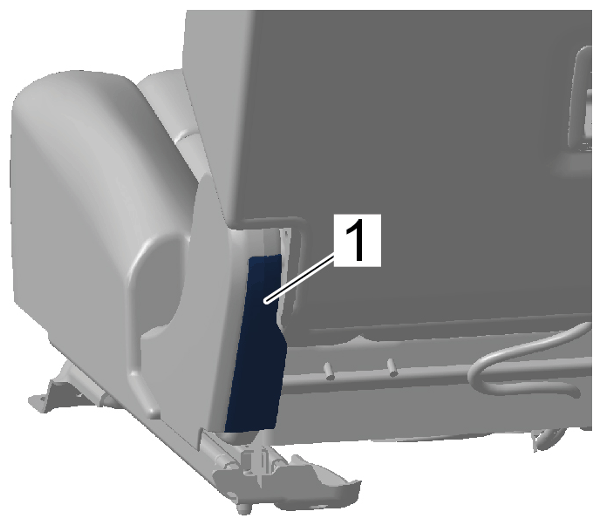

- Unclip rear cover -1-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Rear cover

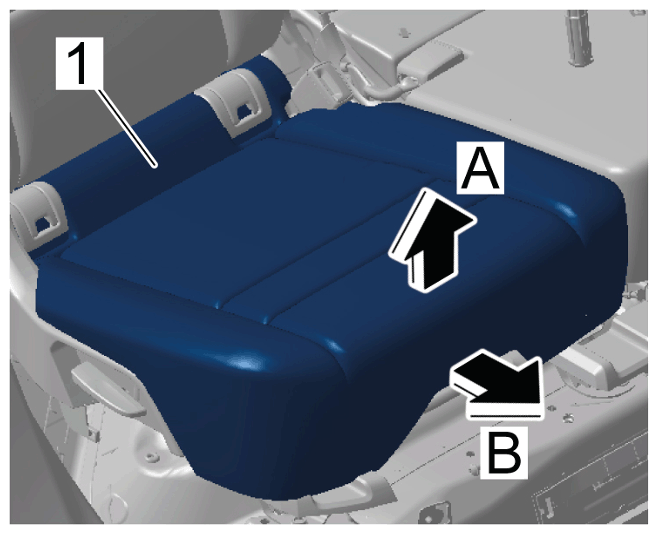

- Lift padding for rear seat (1/3-split folding rear seat) -1-
up slightly -arrow A-
.
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Padding for rear seat (1/3-split folding rear seat)

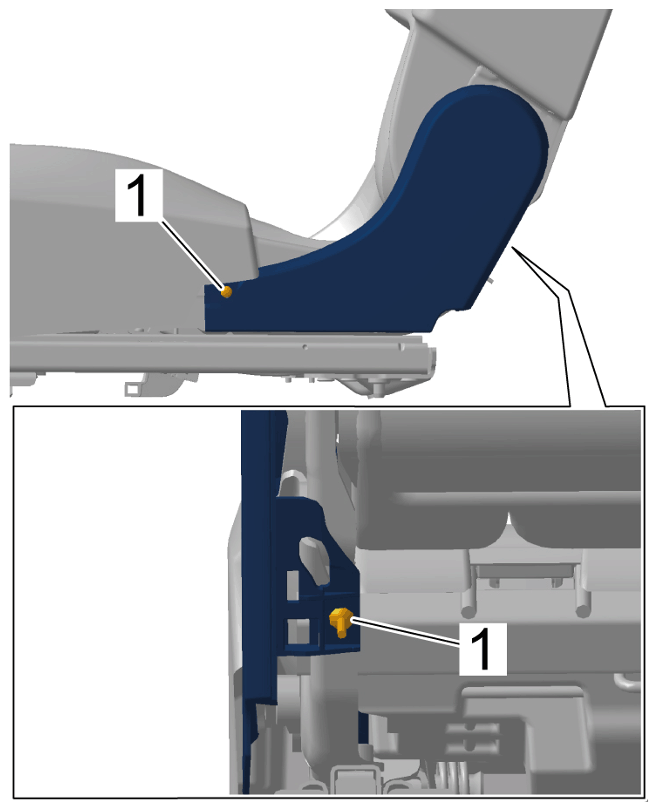

- Remove expansion rivets -1-
and remove rear trim panel (inner, 1/3-split folding rear seat).
 Courtesy of PORSCHE CARS NORTH AMERICA, INC.
|
Expansion rivets
